BDS Switch Lock – Tubular Key – On/Off – 6615A-1
The BDS 09351206 switch lock is a tubular key switch with an on/off function, commonly used to enable or isolate equipment where controlled key access is required. This model is keyed alike and uses the Silca CH9T keyway, with the key removable in the off position only.
Key Features
- Tubular key switch with on/off operation.
- Key removable in the off position only (key captive when switched on).
- Keyed alike configuration for shared keying across multiple switches.
- Single pole switching.
- Solid brass housing with zinc alloy tumbler pin base.
Dimensions
Specifications
- Item Code: 09351206
- Model: 6615A-1
- Keyway: Silca CH9T
- Keying: Keyed Alike
- Function: On/Off
- Key Removal: Off position only
- Momentary: No
- Number of Poles: 1
- Number of Positions: 1
- Current Rating: 4 A at 125 Vac, or 2 A at 250 Vac
- Housing: Solid brass
- Tumbler Base: Zinc alloy
What's In The Box
- 1 × tubular key switch (6615A-1)
- 1 × hex nut
- 2 × BDS branded keys
Suitable Uses
- Controlled on/off switching where key access is required.
- Isolation switching on cabinets, panels, and equipment enclosures.
- Applications where the key must be captive while switched on.
BDS Tubular Switch Lock – Item Code Family
Frequently Asked Questions
- Can I remove the key while the switch is on?
No. This model allows key removal in the off position only. - Is this a momentary switch?
No. It is an on/off switch, not a spring return momentary type. - What keyway does it use?
It uses the Silca CH9T keyway and is supplied with two BDS branded keys.
Additional Information

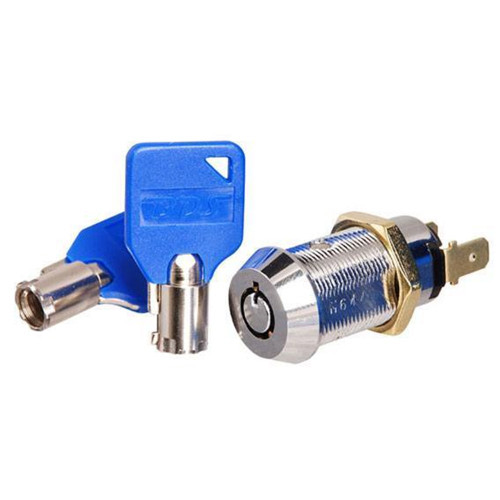

- If you need key removal in both on and off positions, the 2 position version is listed in the item code family above.

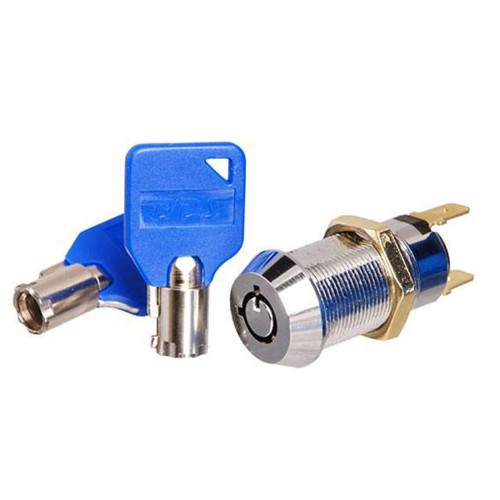

- For applications requiring spring return behaviour, use the spring return model listed in the family table.
- Confirm electrical suitability and wiring method for your equipment before installation.
