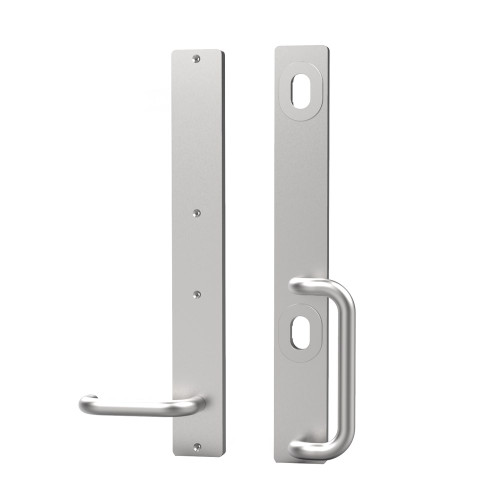

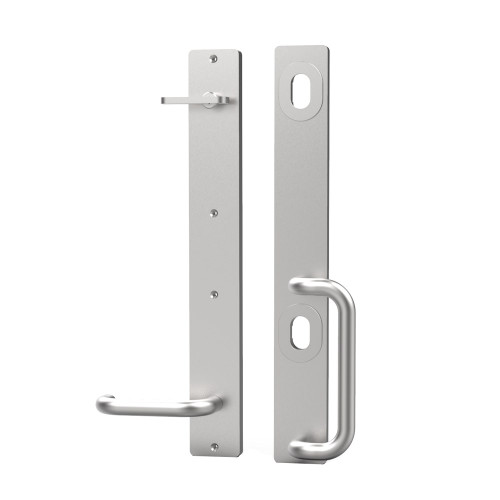

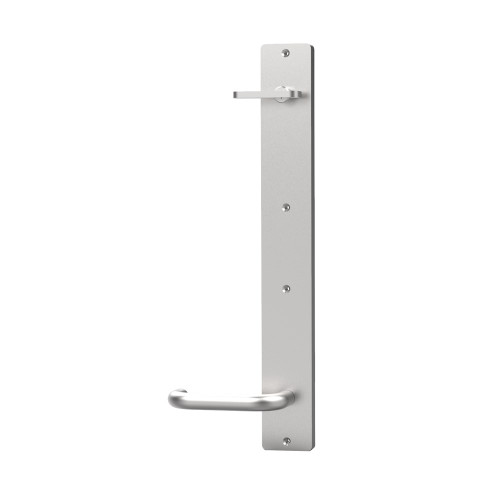

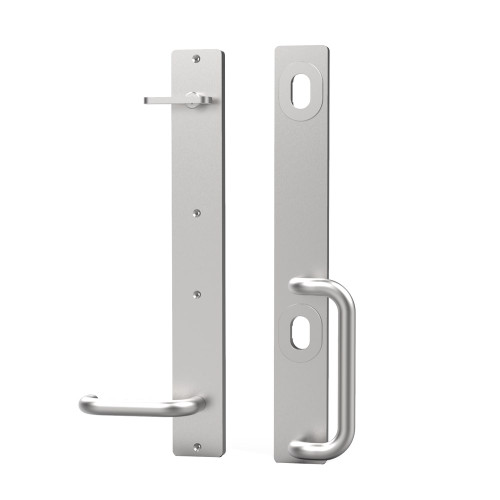

AMS Dual Lock Lever Handle – Stainless Steel Pair Handles with Turn Snib
The AMS Dual Lock Lever Handle Stainless Steel Pair Handles with Turn Snib is a complete internal and external handle solution engineered for doors requiring dual locking. A single downward lever action releases both locks simultaneously, eliminating the need for a two-handed unlocking sequence.
This paired configuration incorporates the enhanced DLLH-33 T turn snib, allowing the upper deadbolt to be engaged or disengaged internally while maintaining the single-action release of both locks. External handle furniture is included as part of this assembly.
Key Features
- Supplied as a matched internal and external handle pair.
- Single lever operation releases both locks simultaneously.
- Integrated turn snib for internal control of the top deadbolt.
- Compatible with most quality Australian mortice locks and latches.
- Heavy duty lever return spring for consistent operation.
- Concealed fixing from the external side of the door.
- Smooth lever handle operation under load.
Specifications
- Product Type: Dual lock lever handle pair with turn snib
- Handing: Left Hand or Right Hand (non-reversible)
- Finish: Stainless Steel
- Plate Size: 390 mm (Length) × 50 mm (Width) × 12 mm (Depth)
- Door Thickness: 42–50 mm (standard screws and spindles supplied)
- Extended Fixings: Available on request
- Internal / External: Supplied as a pair
Suitable Uses
- Secure rooms requiring dual locking.
- Commercial offices.
- High security buildings.
- Critical infrastructure facilities.
- Airports, universities, and schools.
- Hospitals and major utilities.
AMS Dual Lock Lever Handle – Item Code Family
Frequently Asked Questions
Does this handle release both locks with one action?
Yes. A single downward lever action releases both locks simultaneously.
Is this supplied with external handle furniture?
Yes. This product includes both internal and external lever handles.
Can the handing be changed after installation?
No. Handing is fixed and must be selected correctly at the time of ordering.
Additional Information
- Paired handle configurations are commonly specified where controlled internal and external access is required.
- Handing must be confirmed before ordering as the handles are non-reversible.
- Suitability for fire doors or emergency egress must be assessed at the project level.
