ABUS Extreme Series 83WP Rekeyable Padlock – 63 mm Body – 36 mm Shackle (Display Pack)
The ABUS 83WP Extreme Series padlock is a premium weather-protected, rekeyable padlock built around a solid steel body rather than laminated construction. A full dual-injected plastic jacket provides environmental protection while maintaining durability around high-stress areas such as the shackle opening.
Key Features
- Solid steel lock body with full dual-injected plastic jacket.
- Plastic cover formed using a dual injection process to resist splitting.
- Weather resistant construction with protective cover fitted.
- Double ball locking mechanism.
- Special alloy steel shackle with Nano-Protect™ plating.
- Removable cylinder assembly for fast rekeying.
- Compatible with most restricted keying profiles.
- Quick-change shackle feature.
- Convertible between snap-shut and key-captive function.
- Supplied in retail display packaging.
Specifications
- Item Code: 83WP63NC
- Series: ABUS Extreme Series 83WP

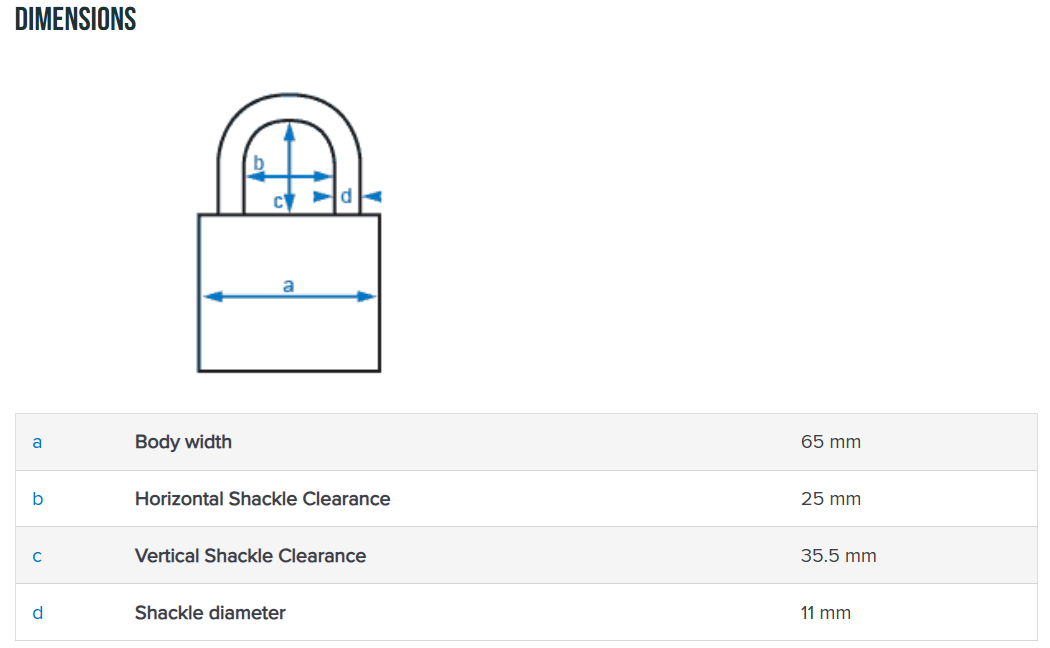

- Body Width: 65 mm
- Body Material: Solid steel with plastic cover
- Shackle Material: Special alloy steel with Nano-Protect™ plating
- Shackle Diameter: 11 mm
- Vertical Shackle Clearance: 35.5 mm
- Horizontal Shackle Clearance: 25 mm
- Standard Shackle Length: 36 mm
- Keying: Keyed to differ
- Key Profile: LW5
- Cylinder: 570 six-pin style barrel
- Weather Resistant: Yes
- Packaging: Display pack
What's In The Box
- ABUS Extreme Series 83WP padlock
- Keys (keyed to differ)
Suitable Uses
- Outdoor gates and fences
- Industrial and commercial sites
- Storage sheds and containers
- Locations exposed to harsh weather conditions
ABUS Extreme Series – Rekeyable Padlocks – Item Code Family
Frequently Asked Questions
Can this padlock be rekeyed?
Yes. The removable cylinder assembly allows fast rekeying.
Is this suitable for outdoor use?
Yes. The padlock is weather resistant and fitted with a protective plastic cover.
Can the shackle be changed?
Yes. The padlock supports a range of replacement shackles.
Additional Information
- The 63 mm body provides increased physical presence and attack resistance.
- Dual-injected jacket improves durability in harsh outdoor environments.
- Commonly specified where rekeying flexibility and weather protection are required.
