ABUS 83IB40 Rekeyable Padlock
The ABUS 83IB40 is a premium rekeyable padlock combining a 40 mm solid machined brass body with a stainless steel shackle for improved corrosion resistance. It is designed for locksmith-managed key systems where flexibility, durability, and environmental performance are required. This version is supplied keyed to differ and boxed.
Key Features
- Solid machined brass body for strength and long service life.
- Stainless steel shackle suited to damp, wash-down, and coastal environments.
- Removable cylinder assembly allows fast rekeying without replacing the padlock.
- Double ball locking mechanism improves resistance to pulling and prying.
- Quick-change shackle system supports alternative shackle lengths.
- Convertible between snap-shut and key retaining operation.

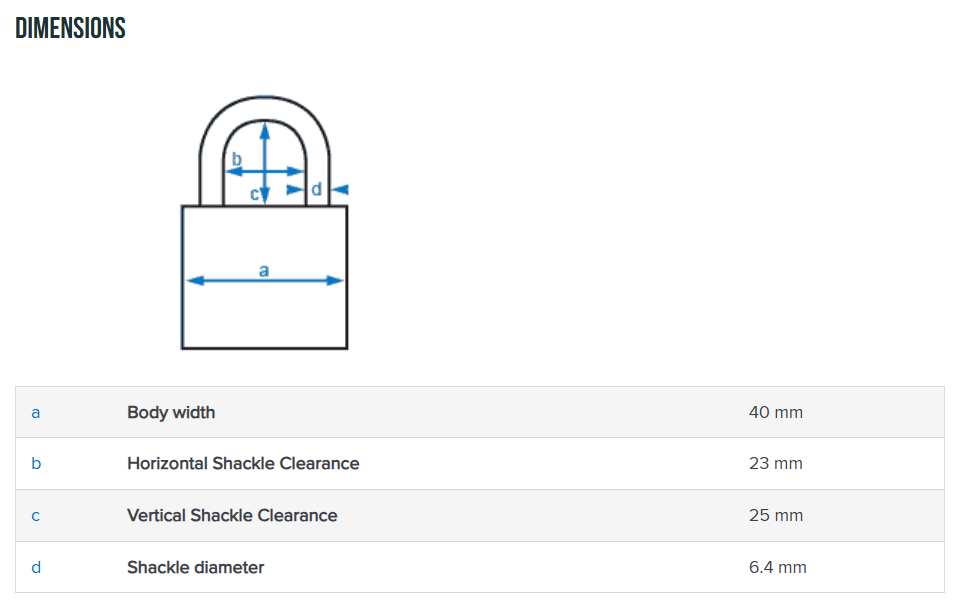

Specifications
- Item Code: 83IB40KD
- Series: ABUS 83
- Body Material: Solid machined brass
- Body Width: 40 mm
- Shackle Material: Stainless steel
- Shackle Diameter: 6.4 mm
- Vertical Shackle Clearance: 25 mm
- Horizontal Shackle Clearance: 23 mm
- Locking Mechanism: Double ball locking
- Keying: Keyed to differ
- Rekeyable: Yes (removable cylinder)
- Keyway: Silca LW5
- Packaging: Boxed
What's In The Box
- 1 × ABUS 83IB40 rekeyable padlock body
- Removable cylinder keyed to differ
- Keys supplied keyed to differ
Suitable Uses
- Commercial and industrial security applications.
- Coastal or high-humidity environments requiring stainless steel shackles.
- Locksmith-managed master key and restricted key systems.
Standard vs Long vs Concealed Shackle Chooser
| Shackle Type | Best For | Trade-Off |
|---|---|---|
| Standard Shackle (This model) | General purpose security | Limited clearance |
| Long Shackle | Deeper or offset fittings | Greater exposure to cutting |
| Concealed Shackle | High attack resistance | Reduced clearance flexibility |
ABUS 83 Series – Item Code Family
Download PDF Resources
|
ABUS Padlocks Catalogue |
Additional Information
- Stainless steel shackle variants are preferred in coastal, food processing, and wash-down environments.
- Replacement shackles of different lengths and materials are available for the ABUS 83 Series.
- Removable cylinders allow rapid changes to keying without replacing the padlock body.
- Correct shackle selection improves both security and usability.
