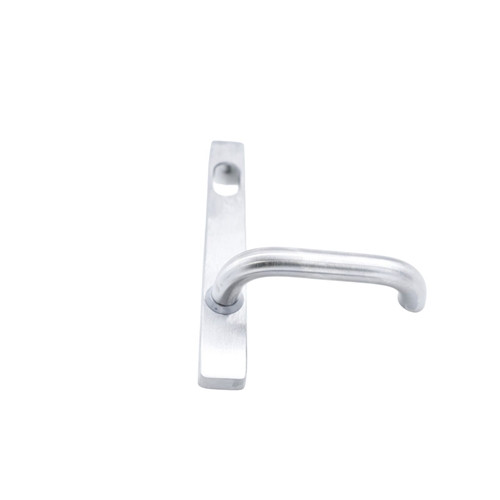

Lockwood 4608 Square End Plate & Fixed 70 Lever
The Lockwood 4600 Series Narrow Brass Plate (4608/70) features a slimline rectangular brass plate (185 x 26 x 11.5mm) with square ends. Fixed Lever & Cylinder - Exterior plate with fixed (non-rotating) lever and cylinder hole. Available in multiple decorative finishes to suit residential, commercial, and institutional applications.
Supplied with Lever 70 - a contemporary lever design offering excellent ergonomics and DDA compliance. The lever combines aesthetic appeal with functional performance, suitable for high-traffic commercial environments and refined residential projects.
The narrow 26mm width brass plate provides a refined, contemporary aesthetic while maintaining structural integrity required for demanding applications. Brass construction ensures long-term durability and corrosion resistance. Designed, assembled and customised in Australia to suit the specific requirements of the Australian market.
Estimated Warehouse Dispatch
Usually ships in 11 business days
Usually ships in 11 business days
Special Order - Non-Returnable Item
Please confirm finish and suitability before ordering. This is a made-to-order item with multiple finish options.
Please confirm finish and suitability before ordering. This is a made-to-order item with multiple finish options.
Available Finish Options
Oil Rubbed Bronze
ORB
Satin Chrome
Fire Rated
- Fire rated up to 4 hours - AS1905.1:2005 with fire-rated Lockwood mortice lock on fire door assemblies. Fire performance is dependent on doorset type and configuration. Compliance is system-based and limited by the FRL of the complete doorset assembly.
Disability Act Compliance (DDA)
- Lever design meets the requirements of AS1428.1-2009, Design for Access and Mobility.
- Compliance relates to hardware design only and does not imply full building compliance.
Key Features
- Slimline rectangular brass plate - 185 x 26 x 11.5mm with square ends
- Lockwood 4600 Series - Fixed Lever & Cylinder - Exterior plate with fixed (non-rotating) lever and cylinder hole
- Available in multiple decorative finishes - see finish options above
- Lever 70 - DDA compliant design meets AS1428.1-2009 Design for Access and Mobility standard
- Brass construction for superior durability and corrosion resistance
- Door thickness range: 32-50mm standard (fixing screws included for this range)
- Back-to-back fixing design - exterior and interior plates designed to fit together
- Fixing configuration: If exterior plate specified with concealed fixing, interior must be visible fixed
- Plates are not handed - levers may be reversed by removing stop screw (except specific handed functions)
- Fire rated up to 4 hours when installed with fire-rated Lockwood mortice lock on compliant fire door assemblies (AS1905.1:2005)
- Level D8 durability testing - 500,000 cycles under Australian Standard AS4145.2-2008
- Brushed satin chrome finish tested to Level C10 corrosion resistance - 1000 hours (AS4145.2-2008)
- Designed, assembled and customised in Australia to suit Australian market requirements and conditions
- Compatible with Lockwood 3770 Selector and 3570 Synergy Series short and standard backset mortice locks
- 25-year mechanical warranty on mechanical components
Full Specifications
Lever/Knob Dimensions
Lever 70 dimensions and specifications
Lever 70 dimensions and specifications
Lever 70 dimensions and specifications
Plate Dimensions & Specifications
Plate dimension drawing - 185 x 26 x 11.5mm slimline rectangular brass plate with square ends.

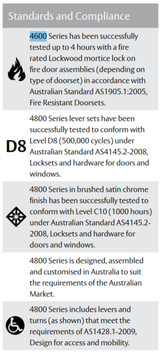

Standards and compliance - fire rating up to 4 hours, Level D8 durability (500,000 cycles), Level C10 corrosion resistance.
Application guide - designed for use with Lockwood Selector/Synergy mortice locks and 3540 Series short backset deadbolts.
Product details - door thickness range 32-50mm, dimensions, fixing methods, handing, decorative finishes, and adjustable tailbar turn functions.
Item Codes
Helpful Tips
- Brass Plate Series: The 4600/4700/4800/4900 narrow brass plate series features a slimline 26mm width profile, compared to wider plate series such as 1800/2800/4800/5800. The narrow width is ideal for contemporary aesthetics and space-conscious applications where a refined, minimalist appearance is desired.
- Series Selection: 4600/4700 Series are designed for use with Lockwood 3770 Selector and 3570 Synergy Series mortice locks and are fire rated. 4800/4900 Series suit 3780/3580 Series mortice locks. Ensure correct series selection for lock compatibility and fire rating requirements.
- Finish Selection: Standard finish is Satin Chrome Brushed (SC). Non-standard finishes include Chrome Plate (CP), Polished Brass (PB), and Polyester Powdercoat (PC). Special finishes include Aged Brass (AG), Architectural Bronze (AZ), Architectural Bronze Unlaqured (AU), Antique Copper (AC), Oil Rubbed Bronze (ORB), Polished Brass Unlaqured (BU), Satin Brass (SB), and Satin Brass Unlacquered (SBU). Refer to end of catalogue for detailed images of all decorative finishes.
- Fixing Method: Plates are designed to fit back to back through the door. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed. This ensures structural integrity while providing aesthetic options for either concealed or visible fixing on exterior.
- Door Thickness: External plates are supplied with fixing screws to suit door thickness between 32 and 50mm. For thicker doors, please refer to the brass furniture thicker doors page at the end of this catalogue section for extended screw options and packing plate solutions.
- Lever Reversibility and Handing: Plates are not handed. Levers may be reversed by removing the stop screw, except for handed levers and functions as shown in the ordering procedure at the end of this section. Check function diagrams carefully when ordering handed configurations.
- Short Backset Compatibility: Some functions in this series are designed to work with Lockwood 3540 Series short backset mortice deadbolts. Important note: Certain lever designs are not compatible on short backset assemblies due to interference with the door stop. Refer to the backset suitability page at the end of this section before ordering.
- Turn Function Features: Turn functions feature a unique adjustable tailbar mechanism that automatically adjusts the length of the tail bar to suit a particular door thickness. This ensures proper operation across the supported door thickness range without manual adjustment.
- Fire Rating Requirements: Fire rating of up to 4 hours applies when installed with fire-rated Lockwood mortice lock on fire door assemblies in accordance with AS1905.1:2005. Fire performance is dependent on doorset type and configuration. Compliance is system-based and limited by the FRL (Fire Resistance Level) of the complete doorset assembly.
- Non-Returnable Item: This is a made-to-order item with multiple finish options. Please verify all specifications, finishes, functions, lever selections, and lock compatibility before placing your order. Once manufactured, items cannot be returned or exchanged.
Lockwood Warranty (Australia)
Mechanical: 25 years. Electrical/electronic: 2 years (excl. batteries).
Mechanical: 25 years. Electrical/electronic: 2 years (excl. batteries).
Finish Warranty Guide:
- Brass Finishes: Up to 5 years (varies by finish type)
- Chrome Finishes: Up to 10 years
Cosmetic finishes, batteries, normal wear and tear, misuse, unauthorised modification, corrosion and labour or freight costs are excluded.
This warranty operates in addition to rights under the Australian Consumer Law.
Lockwood Warranty Overview
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary depending on product type, mechanical components, electrical elements, and finish category.
This overview summarises the structure of Lockwood warranty coverage. Full terms, exclusions and claim procedures are set out in the official Lockwood Warranty document.
Warranty Periods Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- Decorative finishes including Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants: typically up to 2 years against corrosion.
- Unlacquered brass finishes will naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where cleaning and maintenance have not been followed.
What the Warranty Covers
- Defects in material and workmanship during the applicable warranty period.
- Assessment by ASSA ABLOY to determine repair, replacement with the same or closest equivalent product, or refund of purchase price.
Common Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product through the original place of purchase where applicable.
- If claiming directly, obtain a case number before returning goods.
- Products must be securely packed and clearly identified.
- Warranty assessment determines repair, replacement or refund.
Australian Consumer Law
Lockwood warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
