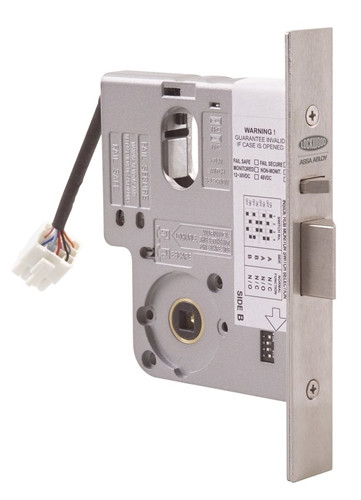

Lockwood 3579ELM0SCM Electric Mortice Lock — 60mm Monitored, Modric Spring, Satin Chrome
The Lockwood 3579ELM0SCM is a monitored primary electric mortice lock with a 60 mm backset and Modric spring. Designed and manufactured in Australia, this high-performance lock is constructed from a zinc alloy body secured between stainless steel plates, with a stainless steel latch bolt and faceplate. It is suited for commercial and institutional high-security applications. The lock can be operated via push buttons, intercom systems, and key switches, or fully integrated with access control systems including card readers and keypads.
Warranty
Key Features
- Electromechanical mortice lock — 60 mm backset
- Monitored version with Modric spring
- Zinc alloy body encapsulated with stainless steel plates
- Stainless steel latch bolt and faceplate
- Compatible with push buttons, intercoms, key switches, and access control systems
- Monitoring features: Dead latched/locked, door position (reed switch), dual key override, request to exit (REX), LED indication
- Field configurable: Fail safe / fail secure, 12–24 VDC multi-voltage, left/right handing, free or locked lever selection, key override monitoring (either side), N/O or N/C monitoring contacts
- Finish: Satin Chrome (SC)
Fire Rating & Testing
- Successfully fire rated up to 4 hours on fire door assemblies in accordance with AS1905.1:2005
- SL8 (Security) and D8 (Durability) to AS4145.2:2008
- RCM Certified
- SCEC endorsed for SL3 Medium Threat Areas
Specifications
- Item Code: 3579ELM0SCM
- Series: 3579 Electromechanical Mortice Lock
- Function: ELM0 — Monitored, no cylinder, Modric spring
- Backset: 60 mm
- Door Thickness Range: 32–50 mm
- Bolt Material: Stainless steel
- Bolt/Latch Projection: 15 mm
- Finish: Satin Chrome (SC)
What's In The Box
- Lockwood 3579ELM0SCM electric mortice lock body
- Stainless steel faceplate
- 1.6m cable with 12-pin socket
- Fixing screws
- Installation instructions
Suitable Uses
- Commercial and institutional high-security facilities
- Integration with access control systems
- Fire-rated door assemblies
- SCEC SL3 endorsed installations
Dispatch & Returns
- Estimated Warehouse Dispatch: 11 business days
Non-Returnable Item
Download PDF Resources
|
Lockwood Electric Mortice Locks Catalogue |
|
Lockwood 25 Year Mechanical Warranty (Conditions Apply) |
Item Code Family
Additional Information
The Lockwood 3579ELM0SCM is the monitored 60 mm backset variant of the 3579 series, supplied with Modric spring. With stainless steel encapsulation, full monitoring capability (key override, door position, REX, locking bar status), and field-configurable settings, it is ideal for high-security commercial and institutional installations requiring SCEC SL3 compliance.
Lockwood Warranty
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary by product type, with separate cover for mechanical components, electrical and electronic parts, keys, and finishes.
The summary below sets out the standard warranty structure. All warranty claims are handled by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries. Full terms and exclusions are set out in the official Lockwood warranty document linked at the base of this page.
Warranty Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- PVD and VIVID finishes: typically up to 10 years.
- Symmetry range finishes: typically up to 5 years.
- Decorative finishes (Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants): typically up to 2 years against corrosion.
- Unlacquered brass finishes naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where the required cleaning and maintenance have not been followed.
How to Make a Claim
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries with your proof of original purchase.
- Keep the product securely packed and clearly identified, ready for assessment.
- Where a claim is escalated to the manufacturer, ASSA ABLOY may issue a case number before goods are returned.
- ASSA ABLOY assesses the claim and determines repair, replacement with the same or closest equivalent product, or refund of the purchase price.
Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
These manufacturer warranties apply in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. Where a failure does not amount to a major failure, you are entitled to have the goods repaired or replaced.
