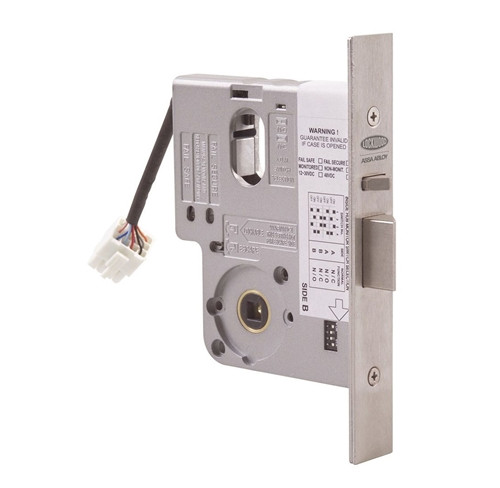

Lockwood 3579HSELM0SC High Security Electric Mortice Lock — 60mm Fail Safe, Monitored, Satin Chrome
The Lockwood 3579HSELM0SC is a high security primary electric mortice lock with a 60 mm backset, designed for fail safe operation on the internal side while remaining secure externally. Manufactured in Australia, the lock body is encapsulated with stainless steel plates and fitted with a stainless steel latch bolt and faceplate, making it highly resistant to tampering and suited for commercial high-security installations. The lock integrates with access control systems including card readers, keypads, intercoms and key switches, and is commonly paired with an electric strike.
Warranty
Key Features
- High security electric mortice lock — 60 mm backset
- Fail safe internally, fail secure externally (when used with electric strike)
- Zinc alloy body encapsulated with stainless steel plates
- Stainless steel latch bolt and faceplate
- Compatible with push buttons, intercoms, key switches, and access control systems
- Monitoring features: Dead latched/locked, door position (reed switch), dual key override, request to exit (REX), LED indication
- Field configurable: Fail safe / fail secure, 12–24 VDC multi-voltage, left/right handing, free or locked lever selection, key override monitoring, N/O or N/C monitoring contacts
- Finish: Satin Chrome (SC)
Fire Rating & Testing
- Successfully fire rated up to 4 hours on fire door assemblies in accordance with AS1905.1:2005
- S3 (Security) and D3 (Durability) to AS4145.2:1993
- RCM (C-Tick) certified
- SCEC endorsed for secure areas
Specifications
- Item Code: 3579HSELM0SC
- Series: 3579HS High Security Electromechanical Mortice Lock
- Function: Fail safe internal, fail secure external
- Backset: 60 mm
- Door Thickness Range: 32–50 mm
- Bolt Material: Stainless steel
- Bolt/Latch Projection: 15 mm
- Voltage: 12–24 VDC
- Current Draw: 80mA @12VDC / 50mA @24VDC (holding)
- Finish: Satin Chrome (SC)
What's In The Box
- Lockwood 3579HSELM0SC electric mortice lock body
- Stainless steel faceplate
- 1.6m cable with 12-pin socket
- Fixing screws
- Installation instructions
Suitable Uses
- Commercial and institutional high-security facilities
- Integration with access control systems
- Fire-rated door assemblies
- SCEC secure area installations
Dispatch & Returns
- Estimated Warehouse Dispatch: 11 business days
Non-Returnable Item
Download PDF Resources
|
Lockwood Electric Mortice Locks Catalogue |
|
Lockwood 25 Year Mechanical Warranty (Conditions Apply) |
Item Code Family
Additional Information
The 3579HS series is designed to maintain security on the external side at all times, while providing internal emergency egress in fire alarm or break glass events. In such cases, power is cut, unlocking the internal side only. An electric strike must always be used in conjunction with this lock, as the external side cannot be electrically released.
