Lockwood 212 Artefact Exterior Oval Plate - Cylinder & Lever 70 | Satin Stainless Steel
The Lockwood 212 Series Artefact Exterior Oval Plate with Cylinder and Lever 70 combines a Lockwood 570 Series oval cylinder hole with the DDA-compliant Lever 70 (Length 121mm, Projection 53mm) for keyed exterior access with lever-operated latch release. Cylinder not included - must be ordered separately.
Supplied in Satin Stainless Steel. Lever is reversible. Pairs with the 213 Series interior plate.
Estimated Warehouse Dispatch
Usually ships in 11 business days
Usually ships in 11 business days
Special Order - Non-Returnable Item
Please confirm cylinder compatibility and suitability before ordering.
Please confirm cylinder compatibility and suitability before ordering.
Available Finish Options
Satin Stainless Steel
SS - Reversible
Fire Rated
- Fire rated up to 4 hours - AS1905.1:2005. Fire performance is dependent on doorset type and configuration. Compliance is system-based and limited by the FRL of the complete doorset assembly.
Disability Act Compliance (DDA)
- The specified lever meets the requirements of AS1428.1-2009, Design for Access and Mobility.
- Suitable for applications requiring DDA-compliant door hardware under the BCA. Lever compliance relates to handle design only and does not imply full building compliance.
Key Features
- Oval 162 x 50mm exterior plate with radius ends - Lockwood Artefact 212 Series
- Cylinder and Lever (Function 01) - keyed exterior access with lever-operated latch release
- Lever 70 - Length 121mm, Projection 53mm, AS1428.1-2009 compliant. Reversible.
- Accepts Lockwood 570 Series oval cylinder - 32mm (H) x 18mm (W). Cylinder not included - order separately.
- Concealed fixings - studs top and bottom. Fixing screws supplied.
- Fire rated to 4 hours - AS1905.1:2005. Level D8 (500,000 cycles). 25-year mechanical warranty.
Full Specifications
Lever 70 - Specifications & Dimensions
Lever 70 - Length 121mm, Projection 53mm. AS1428.1-2009 compliant.
Lever 70 technical drawing showing profile dimensions and fixing stem detail.
Lever 70 product photograph - satin stainless steel finish.
Plate Dimensions & Technical Drawings
Plate dimension drawing - 162 x 50mm oval profile with radius ends and cross-section details.

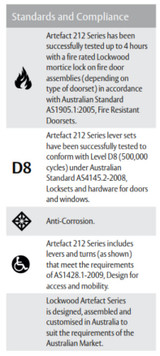

Standards and compliance - fire rating, Level D8 cycling test and anti-corrosion.
Functions diagram - full range of 212/213 Series plate configurations.
Ordering procedure for the 212/213 Series - plate type, function, engraving, cylinder, lever, handing and finish codes.
Helpful Tips
- Cylinder not included: This plate accepts a Lockwood 570 Series oval cylinder (32mm H x 18mm W) - order separately to suit your key system.
- Lever handing: The lever is reversible - it can be flipped by removing the stop screw to suit either hand without needing to specify handing at order.
- Exterior plate - pairs with 213 Series: This is the outside face plate with concealed fixings. It must be paired with a 213 Series interior plate (oval, visible fixings).
- Thick doors: For doors 45-55mm, order long fixing screws SP2000-208 separately.
- Non-returnable: Confirm finish and handing before ordering - this item cannot be returned once purchased.
Lockwood Warranty (Australia)
Mechanical: 25 years. Electrical/electronic: 2 years (excl. batteries).
Mechanical: 25 years. Electrical/electronic: 2 years (excl. batteries).
Finish Warranty Guide:
- Everbrass: 25 years
- Stainless Steel, Chrome & Anodised: Up to 10 years
- PVD / VIVID: 10 years
- Symmetry: 5 years
- Decorative finishes (Bronze, Antique, Powdercoat): Typically 2 years
Cosmetic finishes, batteries, normal wear and tear, misuse, unauthorised modification, corrosion and labour or freight costs are excluded.
This warranty operates in addition to rights under the Australian Consumer Law.
Lockwood offers a comprehensive range of plate door handle series to suit residential, commercial and institutional applications. The image below provides a visual overview of all available plate styles.
Lockwood Warranty
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary by product type, with separate cover for mechanical components, electrical and electronic parts, keys, and finishes.
The summary below sets out the standard warranty structure. All warranty claims are handled by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries. Full terms and exclusions are set out in the official Lockwood warranty document linked at the base of this page.
Warranty Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- PVD and VIVID finishes: typically up to 10 years.
- Symmetry range finishes: typically up to 5 years.
- Decorative finishes (Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants): typically up to 2 years against corrosion.
- Unlacquered brass finishes naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where the required cleaning and maintenance have not been followed.
How to Make a Claim
For full returns and warranty claim procedures, visit our Returns & Warranty page - this is kept up to date and is the authoritative reference for current claim steps.
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries with your proof of original purchase.
- Keep the product securely packed and clearly identified, ready for assessment.
- Where a claim is escalated to the manufacturer, ASSA ABLOY may issue a case number before goods are returned.
- ASSA ABLOY assesses the claim and determines repair, replacement with the same or closest equivalent product, or refund of the purchase price.
Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
Australian Consumer Law
These manufacturer warranties apply in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. Where a failure does not amount to a major failure, you are entitled to have the goods repaired or replaced.
These manufacturer warranties apply in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. Where a failure does not amount to a major failure, you are entitled to have the goods repaired or replaced.
