Interlock 230 A Full Friction Stay – Black Powdercoated (P1560B)

The Interlock 230 A is a full-friction 4-bar friction stay designed for projected top hung (PTH) window sashes in residential applications. It forms part of the Interlock A-Series friction hinge range manufactured by ASSA ABLOY.

Manufactured from extruded aluminium and finished in durable black powdercoat, this model provides support and frictional control of standard-weight projected top hung sashes without the use of sliding channels.

This product is a friction stay only. Window control mechanisms, restrictors, and frame hardware are not included.

Estimated Warehouse Dispatch
18 Days

Available Finish Options

Black Powdercoated Aluminium

Finish selection does not affect functionality, compliance, or performance.

Key Features

Full friction function type (Model “A”).
4-bar friction stay construction.
Manufactured from extruded aluminium.
No sliding channels.
Unique “pull-in” feature for controlled closing.
Factory-set friction level (no site adjustment required).
Designed for residential window applications.
Supplied as a pair (trade pack).

Suitable Uses

Projected top hung (PTH) window sashes.
Residential applications.
Timber and metal frame installations.

Full Specifications

Brand	Interlock (ASSA ABLOY)
Series	A Series Friction Hinges
Model	230 A
Product Code	P1560B
Application	Projected Top Hung (PTH)
Maximum Sash Height	750mm
Opening Angle	45°
Maximum Sash Weight	6kg
Material	Extruded Aluminium
Finish	Black Powdercoated
Supply	Supplied as a pair

Frequently Asked Questions

What does “A” mean in 230 A?
The “A” designates the full friction version of the Interlock A-Series hinge. It provides higher resistance compared to the low-friction “V” model.

Is this hinge suitable for side-hung or casement windows?
No. The 230 A is designed specifically for projected top hung (PTH) sashes.

What is the maximum sash size and weight?
Maximum sash height is 750mm with a maximum sash weight of 6kg.

Is friction adjustable on site?
No. Friction levels are factory set. There is no on-site adjustment mechanism.

Does this hinge include a restrictor?
No. This is a friction stay only. Window restrictors or control arms must be specified separately if required.

Is this product fire rated?
No fire rating or compliance certification is stated in the manufacturer documentation.

Additional Information

This is a mechanical friction stay designed for residential window applications.
Supplied as a pair for correct left and right installation.
For lighter sashes, refer to the 230 V (low friction) model.
For heavier sashes, refer to 330 A, 420HD A or 500 A models within the A-Series range.
No corrosion class, marine rating, or additional certification is stated in the technical flyer.
Always confirm sash weight and height before selecting hinge model.

Dimensions

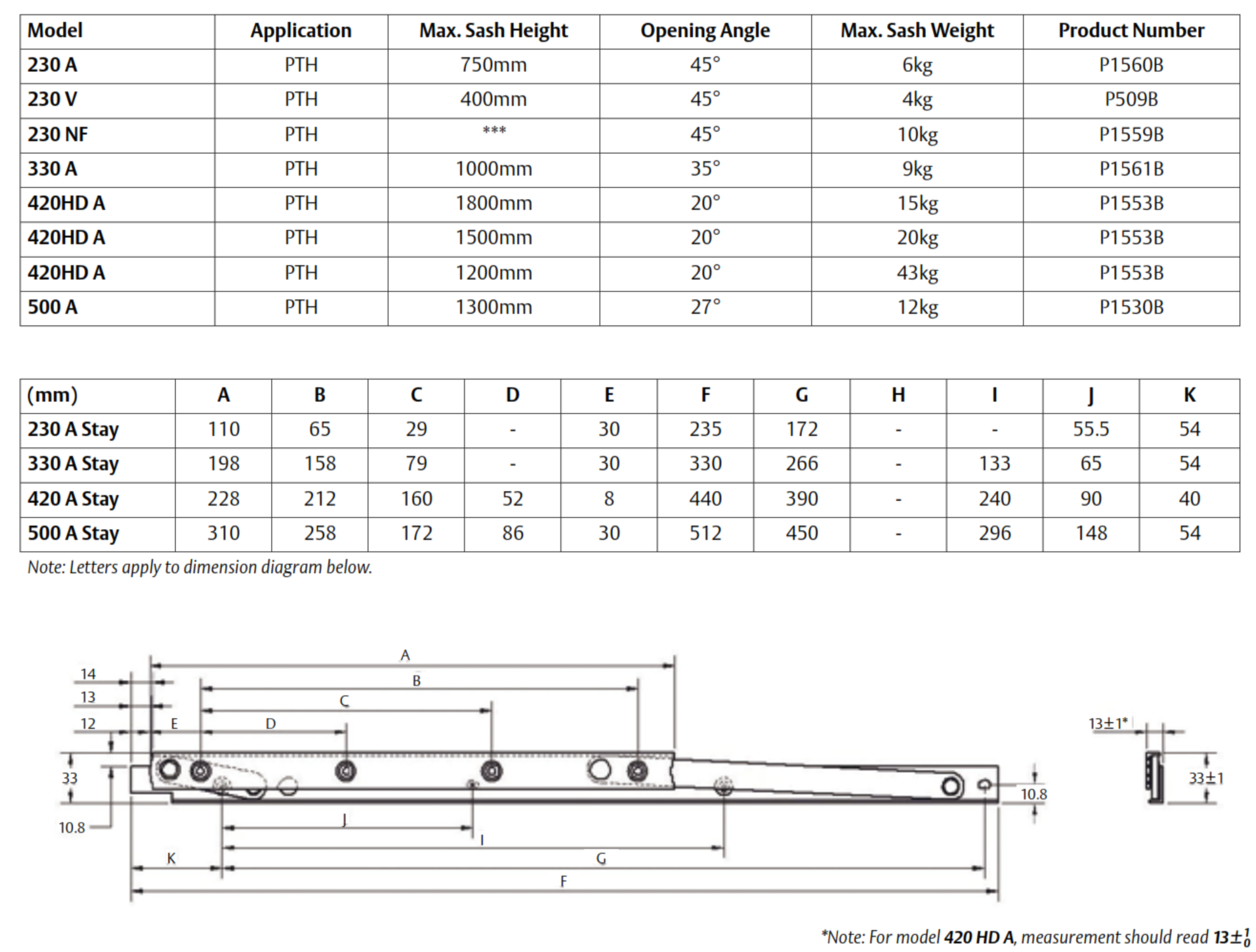

All dimensions shown are in millimetres. Refer to the manufacturer drawing for full A–K measurement references.
