Lockwood 002-4L1SP Single Cylinder Deadlatch — Lever, Open Out Strike, Satin Chrome Pearl
The Lockwood 002-4L1SP is a single cylinder deadlatch with lever handle and open out strike, finished in Satin Chrome Pearl. Designed and manufactured in Australia, the Lockwood 002 Series combines high security with convenience. It is suitable for outward opening timber framed doors, offering durable construction and reliable protection.
Warranty
Key Features
- Single cylinder deadlatch with lever and open out strike
- Finish: Satin Chrome Pearl (SP)
- High security cut-resistant stainless steel bolt
- 11 concealed anchorage points and reinforced frame strengthener
- Bolt hold-back function for passage mode (activated by key or internal lever)
- Supplied keyed to differ with 2 keys
- 78,000 keying combinations available
- Compatible with restricted & master key systems
- Handing: Reversible
- Retrofits most existing 001 Deadlatch installations
Fire Door Approval Context
Lockwood 002 deadlatches appear on some fire door manufacturers’ approved hardware schedules, including public E-Core documentation and a Firecore hardware list. That gives the 002 range genuine fire door relevance when it is matched to an approved doorset.
The key point is that approval is doorset-specific. Fire door suitability must be confirmed against the exact fire door manufacturer’s current hardware schedule, the tested door type, frame, strike preparation, handing and installation method before specification or installation.
In practical terms, a Lockwood 002 deadlatch being accepted on one approved fire door assembly does not automatically mean every 002 variation is approved on every fire door. The exact lock, door and certification path still need to match.
Learn more in Terry’s guide here: Apartment Fire Doors on the Gold Coast - What Locks & Smart Locks Are Actually Compliant?
Important: If you are not sure whether your selected Lockwood 002 deadlatch is approved for a particular fire door, Contact Us before ordering.
Standards & Compliance
- Tested in accordance with AS4145.2-1993
- Door thickness range: 30–45 mm
- Backset: 60mm
- Case: High purity zinc alloy
- Cylinder: Brass barrel, 5 pin tumbler mechanism
Specifications
- Item Code: 002-4L1SP
- Series: Lockwood 002 Single Cylinder Deadlatch
- Function: Lever with open out strike
- Finish: Satin Chrome Pearl (SP)
- Pack Type: Trade Pack
- Keys: 2 included
- Key Blank: KB2015P

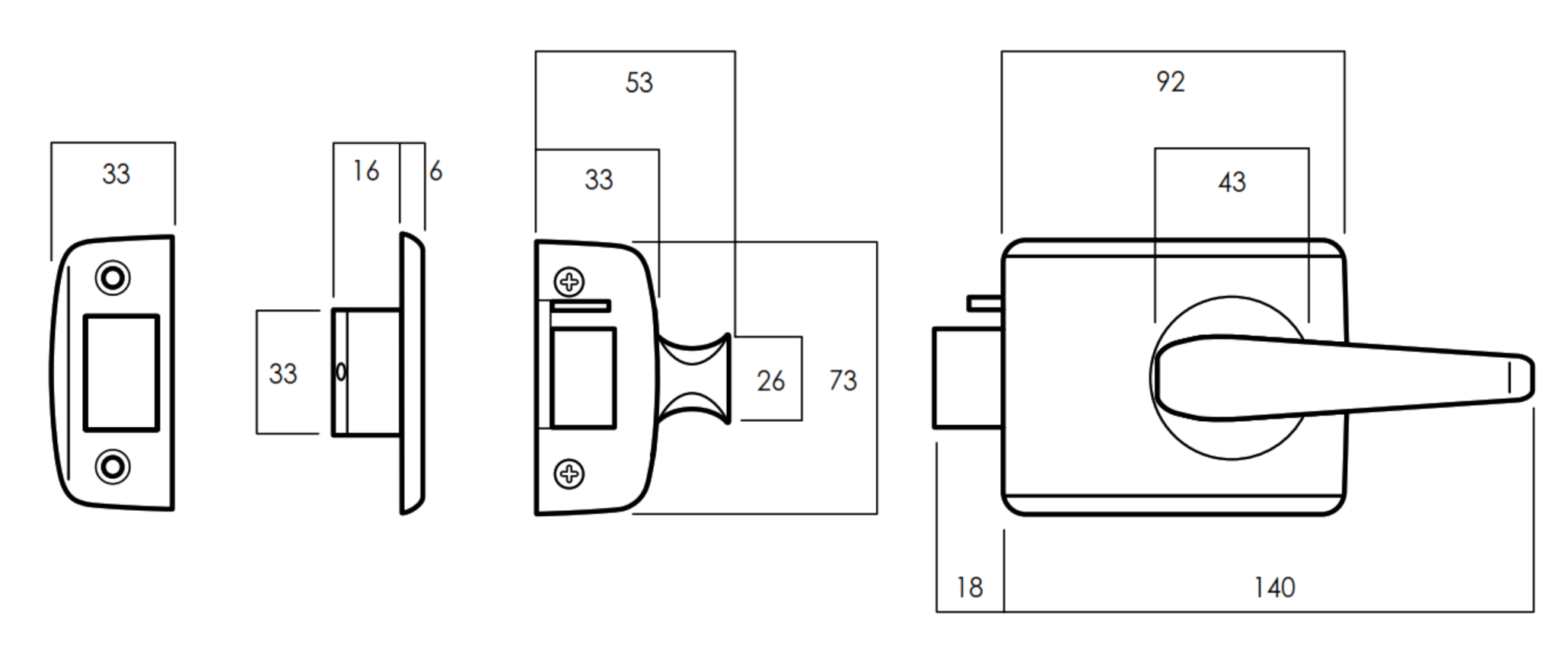

Dimensions
Suitable Uses
- Outward opening timber framed doors
- Residential security installations
- Applications requiring lever handle operation
- Keyed alike with other Lockwood locks for convenience
Dispatch & Returns
- Estimated Warehouse Dispatch: 2 business days
Download PDF Resources
|
Lockwood Rimlocks Catalogue |
|
Lockwood 25 Year Mechanical Warranty (Conditions Apply) |
Additional Information
The Lockwood 002-4L1SP Deadlatch is purpose-built for outward opening doors, offering the convenience of a lever handle and the proven reliability of the 002 Series. With a Satin Chrome Pearl finish, stainless steel cut-resistant bolt, holdback mode, and compatibility with restricted keying, it is a versatile and secure choice for residential door security.
Item Code Family - Lockwood 002 Single Cylinder Deadlatch Range
This table shows the Lockwood 002 single cylinder deadlatch range across knob and lever formats, with timber frame, metal frame and open-out strike configurations. Select the correct model to suit the door frame type and door opening direction.
Lockwood Warranty Overview
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary depending on product type, mechanical components, electrical elements, and finish category.
This overview summarises the structure of Lockwood warranty coverage. Full terms, exclusions and claim procedures are set out in the official Lockwood Warranty document.
Warranty Periods Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- Decorative finishes including Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants: typically up to 2 years against corrosion.
- Unlacquered brass finishes will naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where cleaning and maintenance have not been followed.
What the Warranty Covers
- Defects in material and workmanship during the applicable warranty period.
- Assessment by ASSA ABLOY to determine repair, replacement with the same or closest equivalent product, or refund of purchase price.
Common Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product through the original place of purchase where applicable.
- If claiming directly, obtain a case number before returning goods.
- Products must be securely packed and clearly identified.
- Warranty assessment determines repair, replacement or refund.
Australian Consumer Law
Lockwood warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
