Interlock 350 4B Stainless Steel Friction Stay (Stainless Steel) – P1003
The Interlock 350 4B is part of the 4B Series stainless steel friction hinge range designed for projected top hung (PTH) window sashes.
Manufactured from 304 grade austenitic (non-magnetic) stainless steel, this model provides support and frictional control for residential and light commercial window applications.
This product is a friction stay hinge only. Control arms, restrictors and fasteners are not included.
2 Days
Key Features
- 4-bar friction hinge construction.
- Manufactured from 304 grade stainless steel.
- Non-magnetic material.
- No sliding channels.
- Factory set friction level – no on-site adjustment required.
- Fixed directly through bearing eyelet and formed screw/rivet holes.
- New Zealand made.
- Supplied as a pair.
Full Specifications

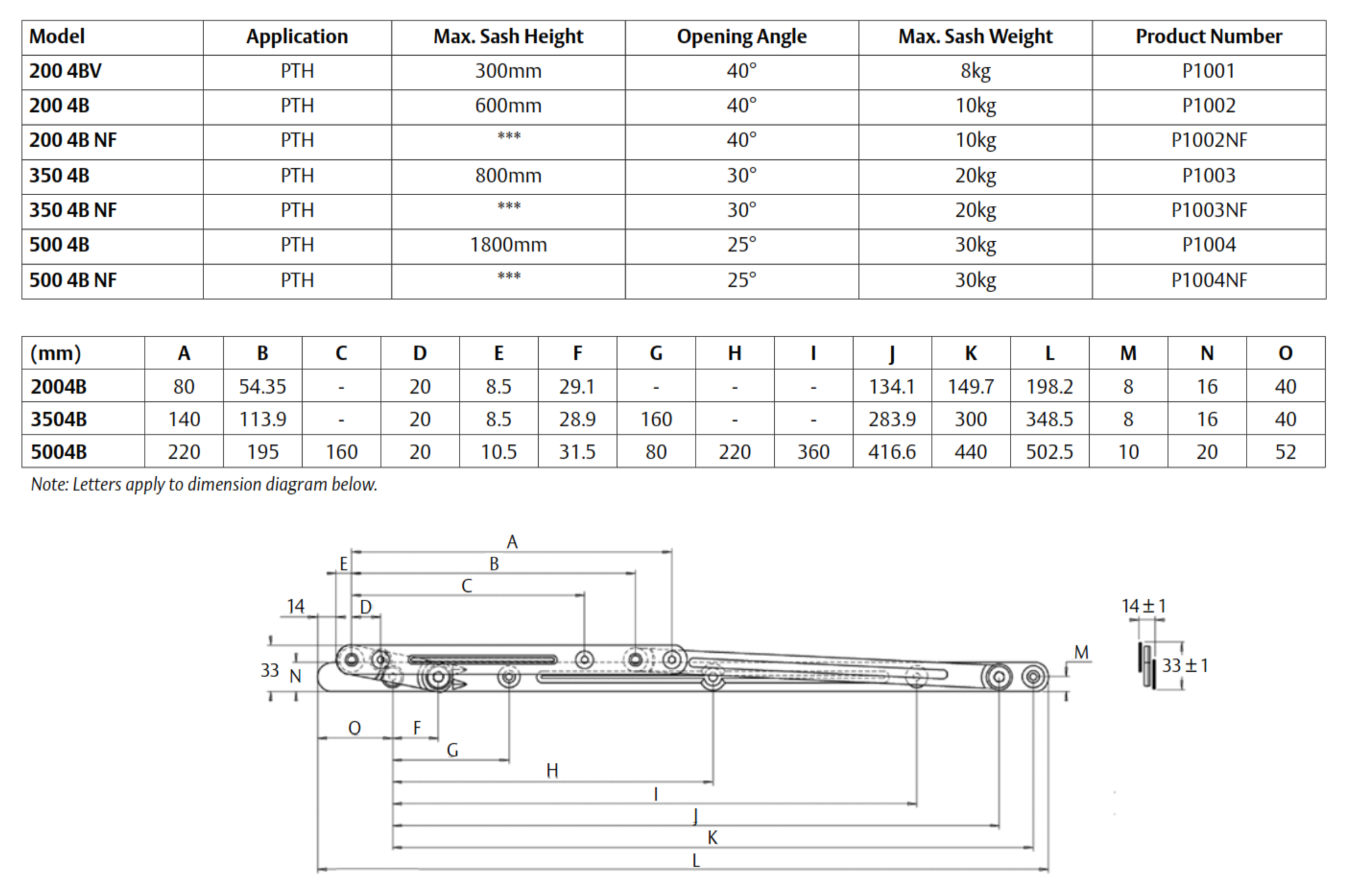

Dimensions
All dimensions shown are in millimetres. Letters correspond to the manufacturer’s dimension table for the 350 4B stainless steel friction hinge.
Item Code Family – 4B Series Stainless Hinges
Frequently Asked Questions
Is P1003 suitable for side-hung windows?
No. The 350 4B model is designed for projected top hung (PTH) windows.
What sash weight can this hinge support?
Maximum supported sash weight is 20kg.
Is this stainless steel?
Yes. It is manufactured from 304 grade austenitic (non-magnetic) stainless steel.
Is friction adjustable?
No. Friction is factory set and not designed for on-site adjustment.
When should I choose the NF version?
Select the NF version when a separate window control mechanism is being used and hinge friction is not required.
Additional Information
- This is a stainless steel hinge suitable for residential and light commercial PTH window applications.
- Always confirm sash height and weight before selecting hinge size.
- For heavier sashes, refer to the 500 4B model.
- Non-friction variants are available for use with window control mechanisms.
- No fire rating or corrosion class beyond material grade is stated in the catalogue.
