Dormakaba 6600 Series Square End Plate – Concealed Fix – Privacy Indicator Emergency Turn – Noosa Lever
Dormakaba 6600 series square end plate door furniture designed for external commercial applications where privacy indication and emergency access are required. This concealed fix plate incorporates a slotted indicating emergency coin turn and Noosa series lever, commonly specified for accessible amenities and controlled-access areas using compatible Dormakaba mortice locks.
Key Features
- Square end plate design suited to commercial external doors.
- Privacy indicator with emergency coin turn for controlled access.
- Supplied with AS1428.1 compliant Noosa series lever.
- Manufactured from solid 316 grade stainless steel.
Disability Act Compliance
- Designed to meet AS1428.1 requirements for accessible door hardware.
Fire Rated
- Successfully tested up to 4 hours on fire door assemblies in accordance with AS1905.1-2005 Part 1 (doorset dependent).

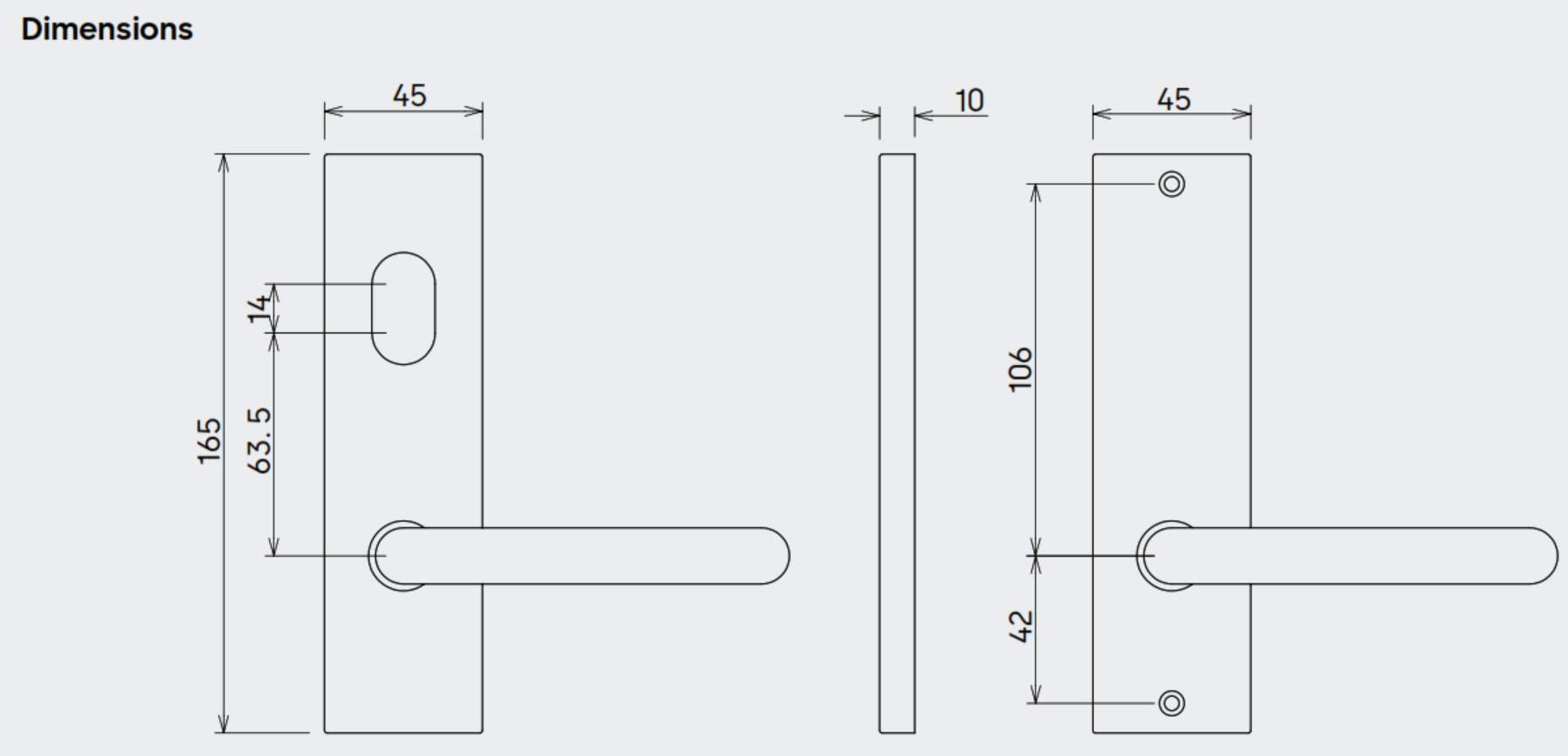

Specifications
What's In The Box
- 1 x External square end plate with privacy indicator emergency turn and Noosa lever
- Concealed fixing hardware
- Fixing screws
Suitable Uses
- Accessible amenities and sanitary compartments
- Healthcare, education and commercial buildings
- Doors requiring privacy indication with emergency access
Available Variants
Item Code Family
Download PDF Resources
- Dormakaba 6000 Series Plate Door Furniture
- Dormakaba 6500 & 6700 Series Template and Fitting Instructions
Frequently Asked Questions
Why is handing required for this product?
The privacy indicator and emergency coin turn are handed and must be selected to suit the door orientation.
Is this suitable for fire doors?
Yes, when installed as part of a compliant doorset, it has been tested up to 4 hours in accordance with AS1905.1.
Does the indicator show occupied or vacant?
Yes, the indicator provides a visual occupied or vacant status.
Additional Information
- Privacy indicator emergency turn plates are commonly specified for accessible sanitary compartments.
- Handing of internal plates must match the external plate handing.
- Confirm mortice lock compatibility and function prior to installation.
