Brava Metro EA Series Classroom Knob Set – 70 mm Backset

The Brava Metro EA Series Classroom Knob Set is a commercial-grade cylindrical lockset designed for educational and institutional environments. Featuring a classroom function, the outside knob can be locked or unlocked using a key while the inside knob remains free at all times.

This model uses a 70 mm backset and incorporates a LW5 profile 6-pin cylinder, making it suitable for integration into most restricted keying systems commonly used in Australian commercial sites.

Key features icon Key Features

  • Classroom function – outside knob key-lockable, inside knob always free.
  • Commercial-grade cylindrical fixing.
  • LW5 profile 6-pin cylinder.
  • Incorporates the PD 8221 barrel.
  • Compatible with most restricted keying systems.
  • Supplied boxed with 2 keys.

Fire rating icon Fire Rated

  • Successfully tested up to 4 hours (depending on doorset configuration) on fire door assemblies in accordance with AS 1905.1-2005 Part 1 – Fire Resistant Doorsets.

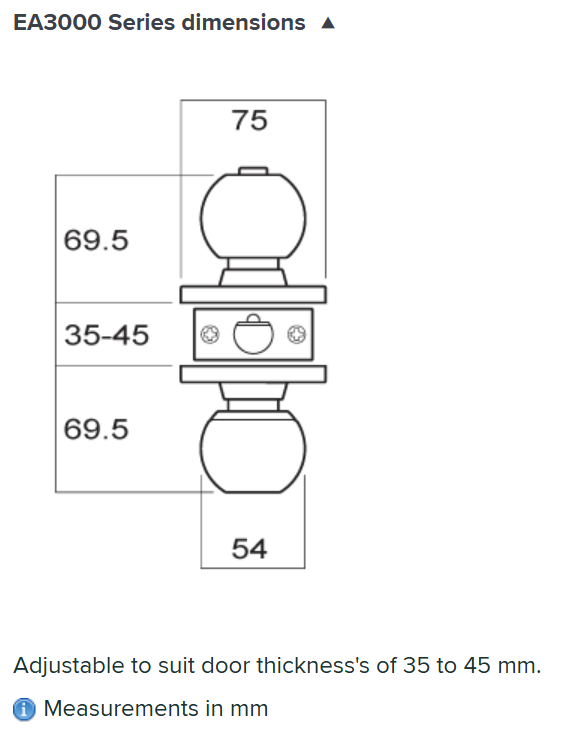

Specifications icon Specifications

  • Lock Type: Cylindrical knob set
  • Function: Classroom
  • Backset: 70 mm
  • Door Thickness: 35 mm – 45 mm
  • Rose Diameter: 75 mm
  • Knob Projection: 69.5 mm (turnsnib not included)
  • Latch: 70 mm
  • Latch Faceplate: 57 mm × 25 mm
  • Strike: 70 mm × 27 mm × 1.2 mm
  • Cylinder: LW5 profile
  • Door Handing: Non-handed

Finish options icon Available Finish Options

  •
    Antique Copper
    EA3712AC70
  •
    Black
    EA3012MB70
  •
    Polished Brass
    EA3112PB70
  •
    Polished Stainless Steel
    EA3812PSS70
  •
    Stainless Steel
    EA3012SS70

Item code family icon Brava Metro EA Series Knob Sets – Item Code Family

Series / Designation Function Internal Operation External Operation Backset Fire Rated
EA Series – Classroom Classroom Knob always free Key locks and unlocks knob 70 mm Yes (up to 4 hours, AS1905.1)
EA Series – Entrance Entrance Knob free, push-button locks outside knob Key unlocks knob 70 mm Yes (up to 4 hours, AS1905.1)
EA Series – Privacy Privacy Push-button locking with emergency release Knob locked when engaged internally 70 mm Yes (up to 4 hours, AS1905.1)
EA Series – Storeroom Storeroom Knob always free Always locked – key required 70 mm Yes (up to 4 hours, AS1905.1)

Suitable uses icon Suitable Uses

  • Classrooms and educational facilities.
  • Commercial and institutional buildings.
  • Fire-rated internal doorsets.
  • Areas requiring controlled external locking with free internal egress.

FAQ icon Frequently Asked Questions

What does the classroom function mean?
The outside knob can be locked or unlocked with a key, while the inside knob is always free to operate.

Is this suitable for fire doors?
Yes. This knob set has been successfully tested on fire door assemblies in accordance with AS 1905.1.

Can it be keyed to an existing system?
Yes. The LW5 profile cylinder is compatible with most restricted keying systems.

Additional information icon Additional Information

  • Commonly specified in Australian education projects.
  • Non-handed design simplifies installation.
  • Fire rating applies to compliant door and hardware assemblies.
!
