ABUS 65/50HB80 Brass Padlock - Long Shackle
The ABUS 65/50HB80 is a solid brass padlock fitted with an 80 mm hardened steel long shackle for applications requiring additional reach. It features a double locking mechanism and precision pin tumbler cylinder, and is supplied keyed alike to KA501.
Key Features
- 80 mm hardened steel long shackle allows access around deep or recessed fittings.
- 50 mm solid brass body offers corrosion resistance and durability.
- Double locking mechanism improves resistance to pulling and twisting.
- Hardened steel shackle with Nano-Protect coating for improved cut resistance.
- Precision pin tumbler cylinder for consistent key operation.
Specifications
- Item Code: 6550HB80KA1
- Body Material: Solid brass

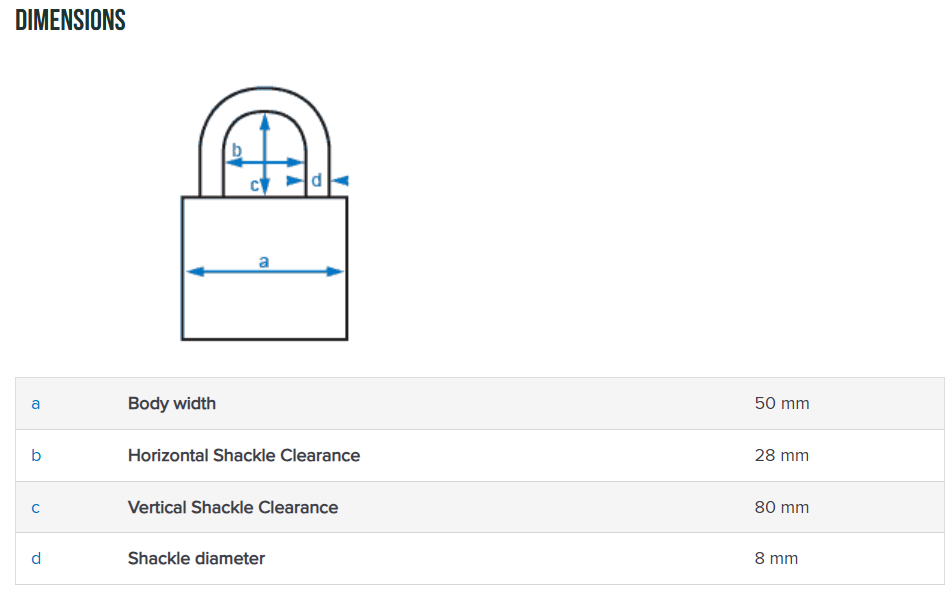

- Body Width: 50 mm
- Shackle Material: Hardened steel with Nano-Protect coating
- Shackle Diameter: 8 mm
- Horizontal Shackle Clearance: 28 mm
- Vertical Shackle Clearance: 80 mm
- Locking Mechanism: Double locking
- Keying: Keyed alike (KA501)
- Key Blank: AB14
- Rekeyable: No
- Packaging: Boxed
What's In The Box
- 1 × ABUS 65/50HB80 brass padlock
- Keys supplied keyed alike to KA501
Suitable Uses
- Gates, chains, and fixtures with deep-set or offset hasps.
- Applications where standard shackle length will not reach.
- Situations requiring flexibility rather than maximum shackle protection.
Standard vs Long vs Concealed Shackle Chooser
| Shackle Type | Best For | Trade-Off |
|---|---|---|
| Standard Shackle | General-purpose locking | Limited reach |
| Long Shackle (This model) | Deep or offset fixing points | Greater exposure to cutting and leverage |
| Concealed Shackle | High-security, attack-prone locations | Reduced clearance flexibility |
ABUS 65 Series – Item Code Family
Download PDF Resources
|
ABUS Padlocks Catalogue |
Additional Information
- Long shackle padlocks provide essential clearance but are more exposed to cutting and leverage than standard or concealed shackle designs.
- Trade installers commonly pair long shackle padlocks with shielded hasps to reduce attack surface.
- Where cutting attacks are frequent, upgrading to a concealed shackle model is often recommended.
- Correct hasp alignment is critical to prevent side loading on the extended shackle.
