Lockwood 4782ENOHDSS — Mortice Lock 25.4 mm Backset to Suit SmartAir Escutcheons Satin Stainless

The Lockwood 4782ENOHDSS is a 25.4 mm short backset mortice lock engineered to suit SmartAir escutcheons. With a Satin Stainless Steel (SS) finish, this lock provides secure deadlatching performance in narrow stile aluminium and commercial doors. Part of the Selector® 4780 Series, it is designed for high-traffic applications and offers seamless integration with SmartAir electronic access control systems.

Delivery truck icon Estimated Warehouse Dispatch: 11 Days
Caution icon Non-Returnable Item: This product cannot be returned once purchased

Key features icon Key Features

  • 25.4 mm short backset mortice lock for narrow stile aluminium/commercial doors.
  • Specifically designed to integrate with SmartAir escutcheons.
  • Satin Stainless Steel finish for strength and modern appearance.
  • Auxiliary deadlatching prevents latch manipulation.
  • Reversible handing without case disassembly.
  • Engineered for high-traffic commercial environments.

Fire rating icon Fire Rated

  • Tested up to 4 hours on compliant fire door assemblies (AS 1905.1:2005).

Specifications icon Specifications

  • Item Code: 4782ENOHDSS
  • Function: Mortice lock designed for SmartAir escutcheons.
  • Backset: 25.4 mm (short backset).
  • Finish: Satin Stainless Steel (SS).
  • Door Type: Aluminium or narrow stile commercial doors.
  • Bolt: 15 mm stainless steel latch with auxiliary deadlatch.
  • Door Thickness: 32–50 mm standard; kits available for thicker doors.
  • Compliance: AS4145.2 (Durability D8, Security S7); AS1905.1 (Fire Doors).

Contents icon What's In The Box

  • 1 × Lockwood 4782ENOHDSS mortice lock body (25.4 mm backset)
  • 1 × Satin Stainless Steel faceplate
  • 1 × Satin Stainless Steel strike plate
  • Fixing screws
  • Installation instructions

Suitable uses icon Suitable Uses

  • Aluminium and narrow stile commercial doors requiring short backset mortice locks.
  • Electronic access control systems using SmartAir escutcheons.
  • Fire-rated doors requiring compact lock cases.
  • High-traffic environments including healthcare, education, offices, and retail.

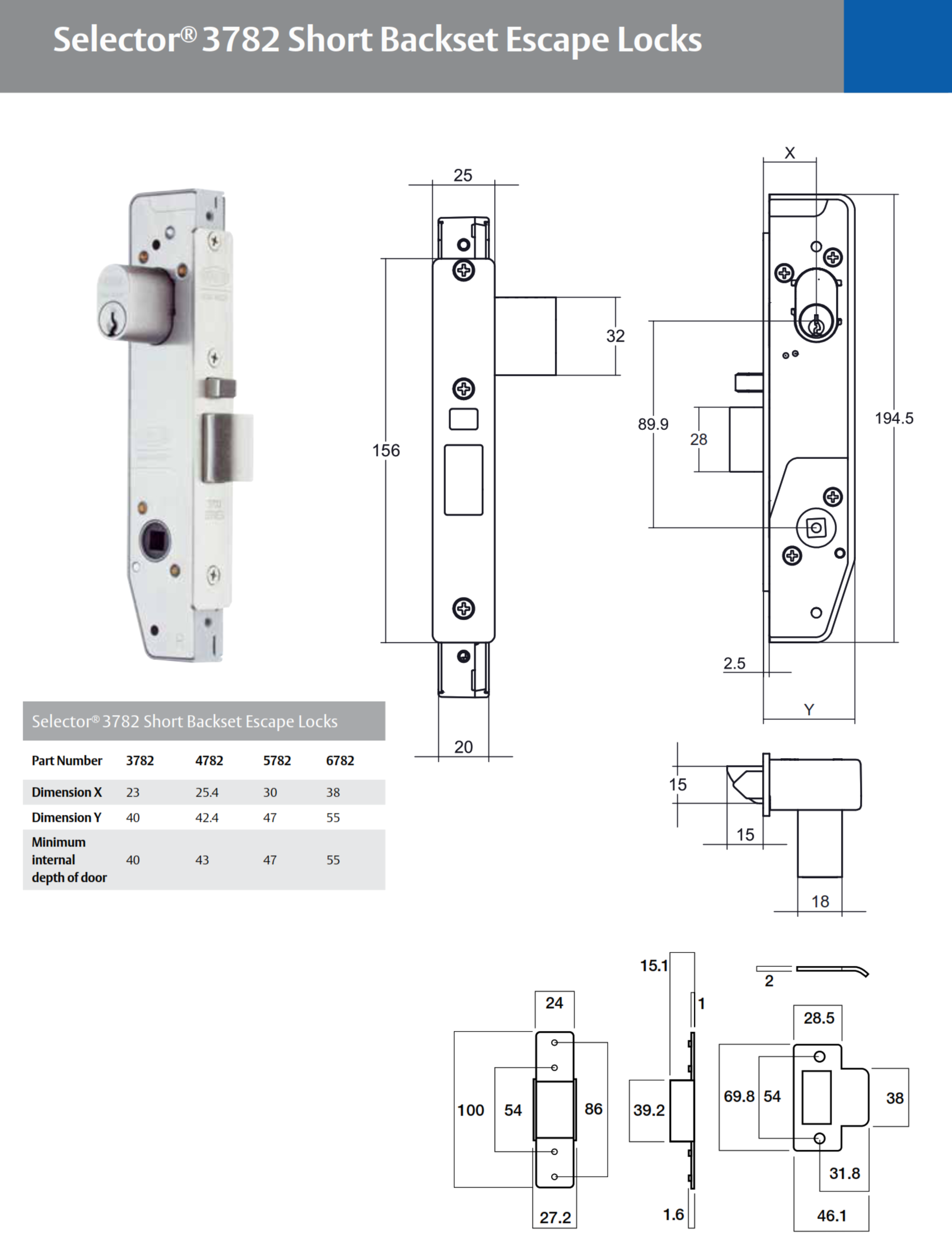

Product code list icon Selector® 4782 Short Backset Escape Locks — Item Code Family (25.4 mm Backset)

Item Code Function Description
4782 Escape Lock (Primary) Short backset mortice escape lock, 25.4 mm backset. Inside handle always free; outside handle rigid.
4782V Anti-vandal Escape Outside opened by handle when unlocked; outside key locks/unlocks and retracts latch; inside always free.
4782VT Anti-vandal + Turn Cylinder outside, turn inside; inside always free; outside key locks/unlocks and retracts latch.
4782X Key Entry Escape Outside opened by key at all times (handle rigid); inside handle always free.
4782XT Key Entry + Turn Outside opened by key at all times; inside by handle and turn; outside key locks outside handle.
4782-V Internal Cylinder Inside handle always free; inside key locks/unlocks outside handle and retracts latch after unlocking.
4782-T Internal Turn Inside handle always free; internal turn locks/unlocks outside handle.
4782XV Key Entry, Double Cylinder Outside key entry at all times; inside always free; inside key locks/unlocks outside handle and retracts latch.
4782TA Anti-lockout + Turn Prevents accidental lockout; inside turn; inside always free; outside handle operable when unlocked.
4782VTA Anti-lockout Anti-vandal + Turn Cylinder outside, turn inside; combines anti-vandal control with anti-lockout reset.

Accessories icon Selector® 4782 — Accessories & Spares (Short Backset, 25.4 mm Backset Series)

Item Code Description Notes
3782-FINKITCP / AC / AG / AU / AZ / BU / ORB / PB / SB / SBU Alternative Finish Kits Strike + faceplate + faceplate screws. Not suitable for 25.4 mm backset 4782 lock.
3782-TFKITSS / CP / PB Timber Door Fixing Kit Converts aluminium-fix short-backset case for timber doors (not suitable for 25.4 mm backset 4782).
3782-2100SS / 3782TF-2100SS ES2100 Electric Strike Faceplates Door position monitoring option with ES2100. TF plate suits timber fix; 3782-2100SS can be used directly with 3782SS primary.
3782-STK32XX / 3782-STK74XX Standard & Long Lip Strikes 32 mm lip (SS/CP/PB). 74 mm lip (SS only). XX = finish.
3782-FSTK32SS / 3782-FSTK64SS Fabricator Strikes Stainless “D” strikes for fabricator installations (32/64 mm lips).
3782-RFSTKCP / SC / PB Retrofit Strike Kits Replacement strike sets for existing installs; finish matched.
3782-STKBOX Strike Box (Pk=10) Box cavity behind strike for cleaner latch engagement.
5782-RK##SS / 5782-RK##CP / 5782-RK##PB Rebate Kits (30/38 mm backsets) For 13 mm rebated timber doors; specify handing (## = ACW/CW). Not for 25.4 mm backset 4782.
3782-SECKIT Security Faceplate Screw Kit TR20 tamper-resistant screws for strike/faceplate security.
SP3570-5018 / -5228 / -5238 / -5258 Extended Spindles Door thickness coverage approx. 32–200 mm (variant dependent).
SP3700/X7CAM X7 Cam (Latching) Retracts latch; interfaces with locking bar.
SP3700/VCAM V Cam (Locking) Locks/unlocks bar; retracts latch after unlocking.
3770M1-ADAPTOR Latching/Turn Adaptor (MkI) Required for short-backset (3780/4782/5782/6782) where an adaptor is specified.
3782-DXKITSC DX Mechanical Digital Kit Codepad + plate + spindle + adaptor (furniture ordered separately).
3782-DXKOKITSC DX Digital with Key Override Kit Includes lower cylinder provision; suits door thickness 43–46 mm.
3787-KIT570E Dual Entry Conversion Kit Lower cylinder plate + spindle cam + screws (two cylinders outside).

Warranty icon Warranty

  • Lockwood 25 Year Mechanical Warranty covers mechanical components and workmanship under normal use and correct installation.
  • Electronic and electrical components are covered for 3 years (PADDE & electric mortice locks 5 years, batteries excluded).
  • Keys are covered for 12 months.
  • Finish warranty varies by finish type and exposure — e.g. Everbrass 25 years; Stainless/Chrome/Anodised 10 years; PVD/VIVID 10 years; Symmetry range 5 years; decorative finishes such as bronze, antique and powdercoat 2 years (natural brass ageing excluded).
  • Warranty excludes misuse, improper installation, modification, or failure to maintain as specified.
