Lockwood 200 Ext Plt w Cyl Hole Male Sym Outline 96 Lvr RH
200 EXT PLATE WITH CYL HOLE, MALE SYM OUTLINE & 96 LEVER RH Satin Stainless
Estimated Warehouse Dispatch: 11 Days
***Non-Returnable Item***

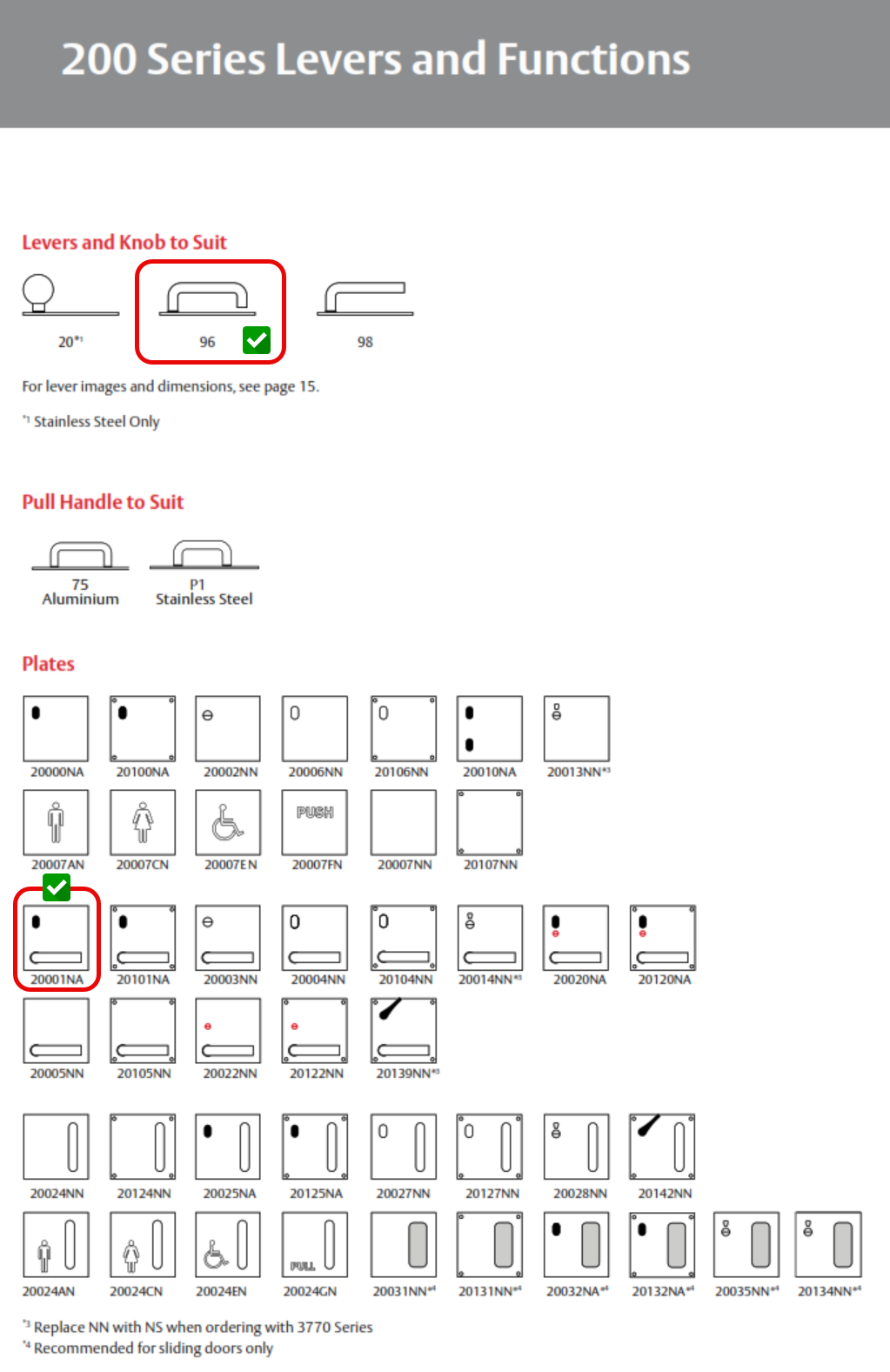

Lockwood Artefact 200 Series Square Corner Furniture
The distinguished range of Artefact in Aluminium, Brass and Stainless Steel, offersarchitects and specifiers a complete range of slim line, door furniture plates.
Suitable for use in public, commercial, industrial and institutional buildings, where there is a need for high grade and durable fittings.
Artefact range of door furniture plates offers a selection of functions with engraving available to suit most requirements.
The 200 Series Door Furniture is 162mm square with square corners.
Concealed fixed plates have studs with internal threads located in each corner, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.
Application
Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks; Latches and Push and Pull doors
Key Features
- External plate with 96 lever.
- Concealed fixing with screws at 4 points.
- Cylinder hole (cylinder not included).
- Male symbol.
- Right handed.
- Fire rated up to 2 hours.
- Supplied in trade pack.
- Plate Dimensions.
- Plate dimensions: 162mm x 162mm x 2mm.
- Cylinder pitch: 64mm.
- Materials.
- Aluminium / Brass / Stainless Steel.
- Door Thickness.
- 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.
- When using flush pulls back to back the minimum door thickness is 40mm.
- Warranty: 25-year mechanical warranty.
