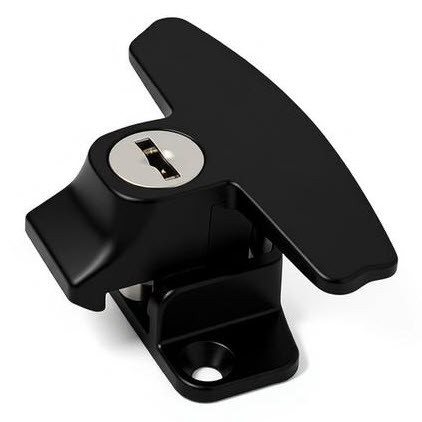

Whitco Diecast Sliding Window Lock – Keyed Lockable with Aluminium Strike
The Whitco Diecast Sliding Window Lock is a lockable window fastener designed for sliding window applications. It combines a pull handle and locking mechanism in a single unit, providing both window operation and secure locking.
Constructed from zinc diecast metal, the lock features a spring-loaded catch for automatic latching and a keyed cylinder for controlled access. It is designed for visible fixing and is suitable for both aluminium and timber window frames.
This model is supplied with an aluminium strike and is commonly used in residential window installations requiring a lockable sliding window solution.
Estimated Warehouse Dispatch: 5-7 Business Days
Non-Returnable Item: This product is a special order and is not returnable.
Key Features
- Combination window pull and lock in a single unit
- Keyed locking mechanism for controlled access
- Spring loaded catch for automatic latching
- Visible fixing design for straightforward installation
- Includes aluminium strike with anti-bow lugs
- Push lever to open and pull lever to close
- Suitable for aluminium and timber window frames
- Available in lockable configuration
- Australian made with imported cylinder
Suitable Uses
- Sliding aluminium windows
- Sliding timber windows
- Residential window applications
- Window upgrades requiring lockable fasteners
- Replacement for existing diecast window locks
Full Specifications
Available Finish Options
Satin Chrome Pearl
Brown
White
Black
Finish selection does not affect functionality or performance.

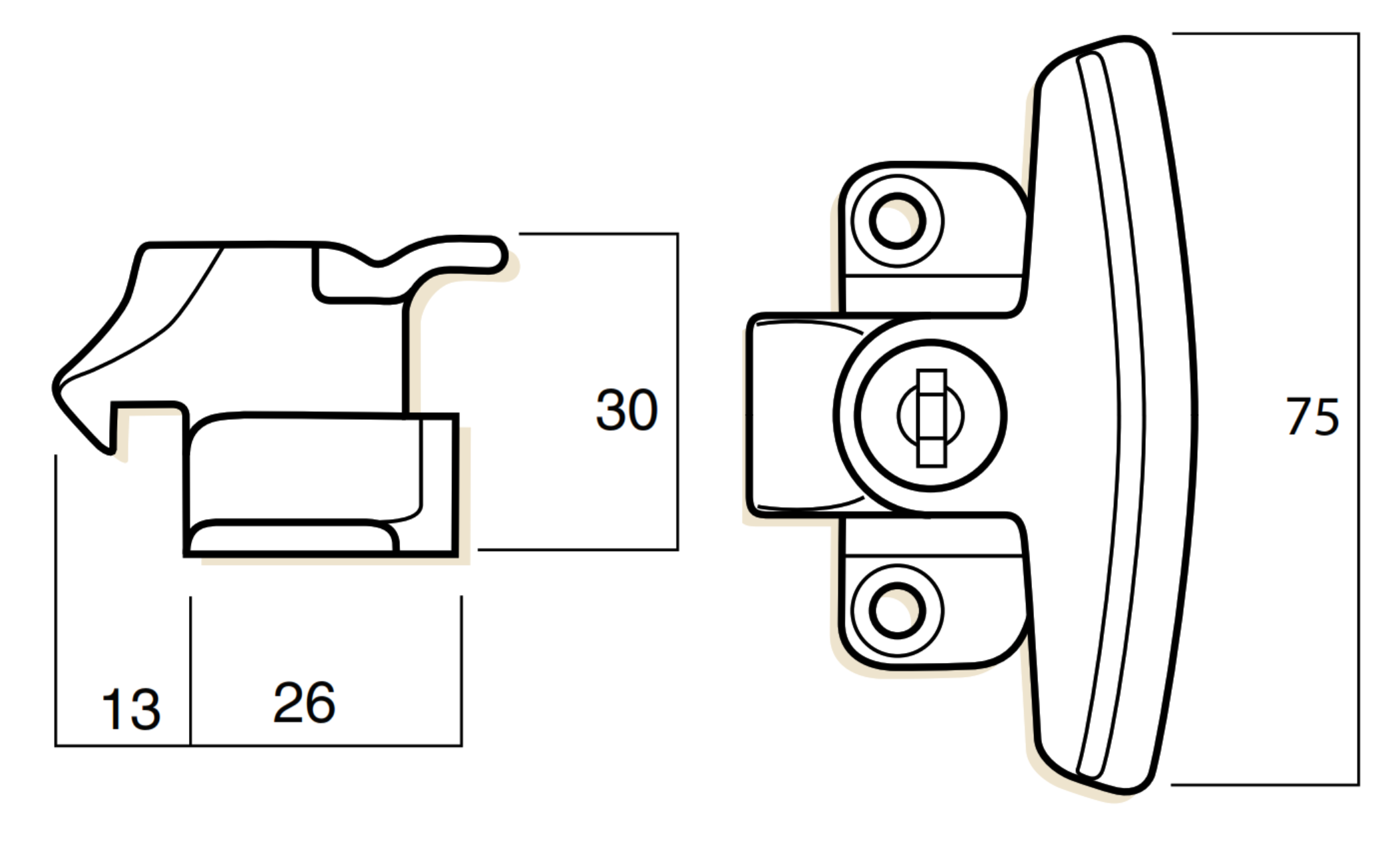

Dimensions
Frequently Asked Questions
Is this lock suitable for all sliding windows?
It is suitable for most aluminium and timber sliding windows, provided mounting and strike alignment are compatible.
Does this lock include keys?
Yes, keyed versions are supplied with Whitco keys.
Can this be keyed alike to other locks?
This model uses a wafer cylinder and can be keyed alike to other compatible Whitco products.
Is this a high security lock?
It provides residential-level security and is primarily designed as a locking fastener rather than a high security bolt system.
Can it be retrofitted to existing windows?
Yes, it is commonly used as a replacement for existing sliding window fasteners.
Additional Information
Installation Note:
Correct alignment between the lock body and aluminium strike is critical for proper latching and locking performance.
Common Mistake:
Incorrect strike positioning can result in poor engagement or difficulty locking the window.
Product Positioning:
This product functions as both a handle and locking device, reducing the need for separate window pulls and locks.
Trade Insight:
Best suited for standard residential applications where ease of use and replacement compatibility are priorities over high security locking systems.
Whitco Sliding Window Lock Series – Item Code Family
Whitco branded products are covered by a 10 Year manufacturer warranty against defects in materials and workmanship.
- Pneumatic door closers: 12 months
- Keys: 12 months
- Finishes and cosmetic damage: excluded
- Removal, refitment and labour: excluded
Warranty applies to Whitco products purchased new in Australia from ASSA ABLOY or authorised resellers.
The lock body is identical across all Whitco diecast sliding window locks. The difference is the strike supplied in the kit, which must match the window frame type.
• Keyed Lockable - Aluminium Strike
• Non Lockable - 16mm Aluminium Strike
Timber Frame Versions:
• Keyed Lockable - Timber Strike
• Non Keyed - Timber Strike
| Feature | Aluminium Strike Versions | Timber Strike Versions |
| Strike Type | Flat strike (12mm or 16mm) | Timber-specific profile |
| Frame Type | Aluminium window extrusion | Timber frame |
| Installation | May require packers | Direct screw fixing |
| Selection Method | Based on profile width | Based on frame material |
