Zanda 7196 – Vector Privacy Integrated Latch
The Vector Privacy Integrated Latch keeps bathrooms and bedrooms neat and functional. The privacy button is built into the lever rose, so you get a clean look without a separate turn snib. Operation is intuitive—push to lock inside, emergency release outside—while the Vector’s minimalist lines match the rest of the range for a consistent finish across the project.
Key Features
- Integrated privacy button on the rose—no separate turn set required
- Clean, modern Vector styling for a unified look with passage and entrance sets
- Smooth, positive action suited to residential and light‑commercial use
- Simple emergency release from the outside for safety
Specifications
- Item Code: 7196
- Type: Integrated Privacy Lever Set on Round Rose
- Components: 1 × Pair Vector Levers with integrated privacy button (on rose), 1 × Tubular Latch — 60 mm Backset (1131)
- Backset: 60 mm (specify otherwise if required)
- Rose Diameter: 54–55 mm (model dependent)
- Door Thickness: up to 55 mm
- Rebate Kit (for privacy/passage sets): 1102A (optional accessory)
- Function: Privacy — lock from inside; emergency release outside; no key function
- Warranty: 15‑Year Mechanical Warranty
What's In The Box
- 1 × Pair Vector Levers with integrated privacy button — 7196
- 1 × Tubular Latch — 60 mm Backset (1131)
- Strike plate, face plate, and fixing screws
- Installation instructions
Available Finish Options
-
Matt Black
7196.BLK -
Brushed Nickel
7196.BN -
Graphite Nickel
7196.GN

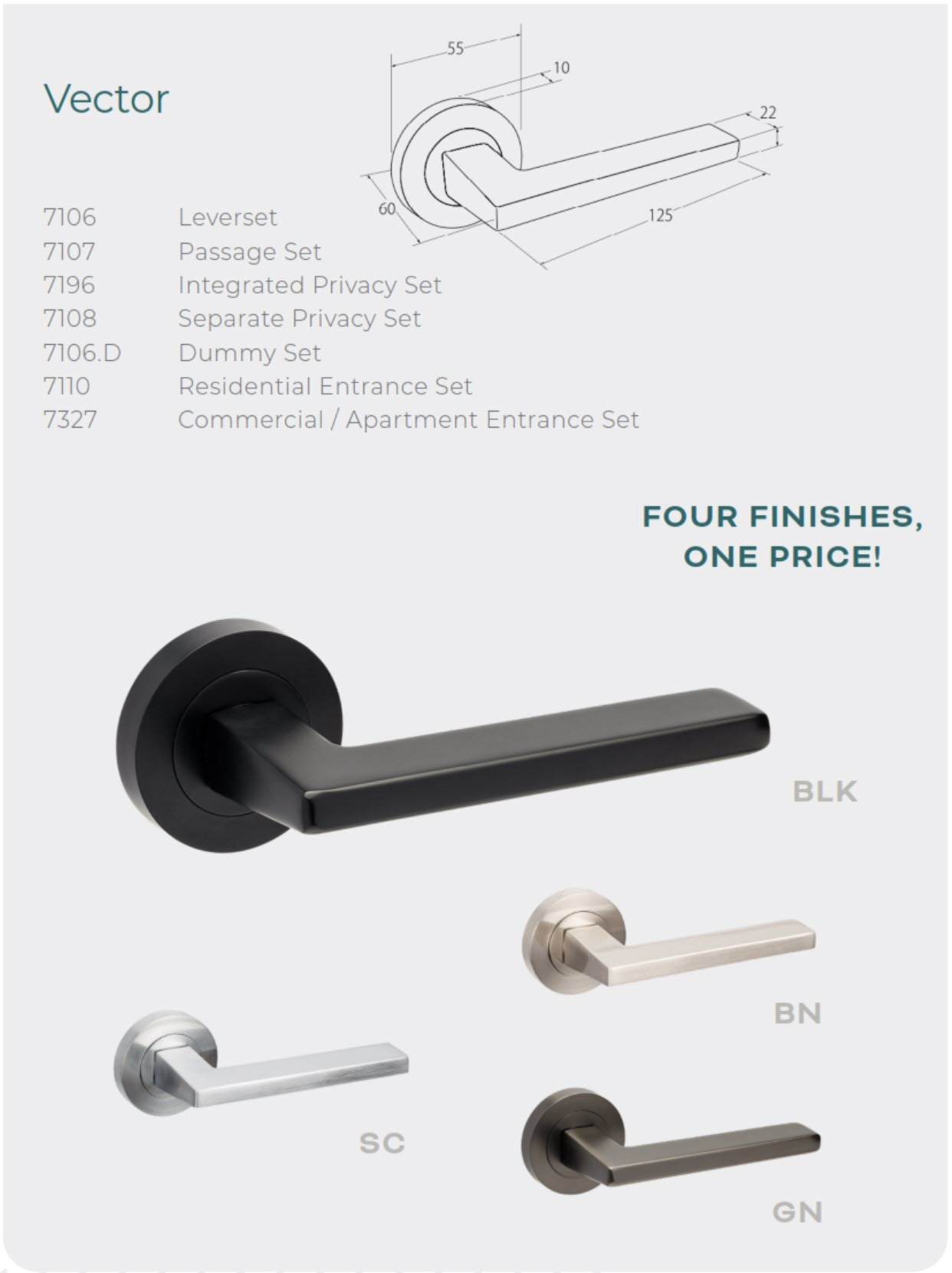

Item Code Family – Zanda Vector Series
