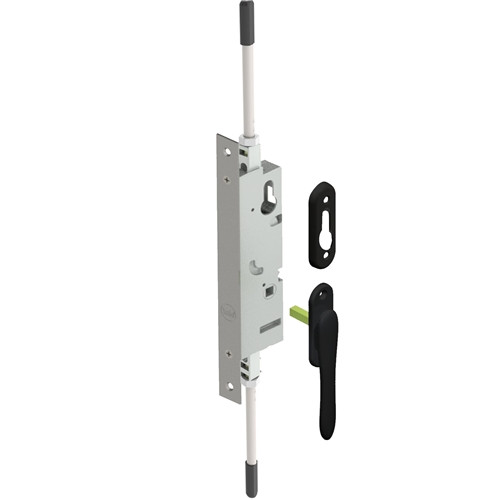

Lockwood Pinnacle Bi-Fold Mortice Locks — Uno Handle Kits (25mm & 30mm Backset)
The Lockwood Pinnacle Bi-Fold Mortice Lock is engineered for modern bi-fold windows and doors. Offering two-point locking with one motion, it delivers strength and ease of operation. The Uno handle kits are available in 25 mm and 30 mm backsets, with single or double handle configurations. Each kit includes rods (1.0 m + 1.3 m) and is backed by Lockwood’s 25-year warranty.
Due to the size and/or weight of this item, standard shipping rates may not apply. Additional freight charges may be required depending on your location.
Key Features
- Two-point locking from a single handle turn.
- 22 mm bolt throw for secure engagement.
- Supplied with 1.0 m and 1.3 m rods (extensions available separately).
- Threaded rod connection for easy on-site adjustment.
- Uno handle design — modern, slim, and functional.
- Non-locking faceplates available to convert locks to non-locking versions.
Specifications
- Item Code Family: UB201 & UB311 (Uno Kits)
- Backsets: 25 mm, 30 mm
- Handle Options: Uno style — single handle or double handle + escutcheon
- Rods Supplied: 1.0 m + 1.3 m
- Keying: Compatible with 5- or 6-pin Euro profile cylinders (sold separately)
- Finishes: Brushed Stainless Steel faceplate; kits in BLK (Black) or SP (Satin Chrome Pearl)
- Suitability: Aluminium windows and doors
Item Code Family — Pinnacle Bi-Fold Mortice Locks (Uno Kits)
* Denotes finish code: BLK (Black), SP (Satin Chrome Pearl)
Suitable Uses
- Bi-fold aluminium doors and windows requiring secure two-point locking.
- Residential projects where Uno handles match design preference.
- Installations needing complete lock kits with supplied rods.
Accessories & Spares
Warranty
- General Warranty: 25 years on mechanical components
- Finish Warranty: Black / Satin Chrome Pearl subject to Lockwood decorative finish terms
Download PDF Resources
|
Lockwood 25 Year Mechanical Warranty (Conditions Apply) |
|
Lockwood Euro Profile Mortice & Twin Bolt Locks — Catalogue |
Lockwood Warranty Overview
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary depending on product type, mechanical components, electrical elements, and finish category.
This overview summarises the structure of Lockwood warranty coverage. Full terms, exclusions and claim procedures are set out in the official Lockwood Warranty document.
Warranty Periods Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- Decorative finishes including Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants: typically up to 2 years against corrosion.
- Unlacquered brass finishes will naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where cleaning and maintenance have not been followed.
What the Warranty Covers
- Defects in material and workmanship during the applicable warranty period.
- Assessment by ASSA ABLOY to determine repair, replacement with the same or closest equivalent product, or refund of purchase price.
Common Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product through the original place of purchase where applicable.
- If claiming directly, obtain a case number before returning goods.
- Products must be securely packed and clearly identified.
- Warranty assessment determines repair, replacement or refund.
Australian Consumer Law
Lockwood warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
