Lockwood TB25-1 Drop Bolt — 12–24 VDC Fail Safe Monitored

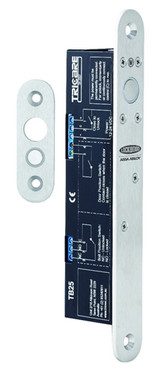

The Lockwood Padde Series TB25 range of Drop Bolts represents true engineering innovation, design excellence, and the superior quality expected from Lockwood. Designed for swing-through double action doors, these bolts are ideal for situations where an electric strike is impractical, delivering high security and reliable monitored performance.
Warranty
- 5 Year Tricare Warranty (Padde Series)
- Lockwood 25 Year Mechanical Warranty (Conditions Apply)
Key Features
- High security: bolt is deadlocked in the extended position
- Integrated bolt position monitoring
- Door position monitor with integrated magnet in strike plate (no separate reed required)
- Multi-orientation: operates horizontally or vertically
- Power-to-Lock / Power-to-Open variants available
- Continuously rated solenoid
- Tamper proof: cannot be defeated with tools between lock and strike
- Intelligent electronics: up to 8 auto re-lock attempts, 8 sec unlock delay
- Thermal fuse protection prevents overheating fire risk
Specifications
- Item Code: TB25-1
- Voltage: 12–24 VDC
- Start Current: 1100 mA @12 V / 1000 mA @24 V
- Holding Current: 210 mA @12 V / 90 mA @24 V
- Holding Force: 1000 kg
- Locking Mode: Fail Safe (non field-selectable)
- Monitoring: Bolt + Door position contacts
- Dimensions (Mortice): 164 × 22 mm
- Bolt Size: 12.7 × 16 mm
- Face Plate: 10 × 25 mm, Stainless Steel
- Construction: Anti-corrosion, stainless steel faceplate & strike
What's In The Box
- TB25-1 drop bolt lock body
- Stainless steel faceplate & strike plate
- Integrated door position magnet
- Fixing screws
- Installation instructions
Suitable Uses
- Swing-through double action doors
- Applications where electric strikes are impractical
- Misaligned doors
- Timer-controlled doors
- High-security fire-rated applications
Dispatch & Returns
- Estimated Warehouse Dispatch: 2–4 business days when in stock (call to confirm)
Download PDF Resources
|
Lockwood Electromechanical Door Solutions Catalogue |
|
Lockwood 25 Year Mechanical Warranty (Conditions Apply) |
Item Code Family
Accessories
Additional Information
Specification Statement: The TB25 drop bolt shall operate in both horizontal and vertical orientations. Bolt and door positions must be monitored, with an integrated reed switch provided in the strike plate. Electronics must provide up to 8 lock/unlock attempts, 8 second unlock delay, automatic relock, power reduction circuitry, and a one-time thermal fuse cut-out. Face plate and strike plate must be stainless steel.
