Lockwood Symmetry® 7107 Deadbolt – Double Cylinder
The Lockwood Symmetry® 7107 is a double cylinder deadbolt providing enhanced security by requiring a key on both the inside and outside of the door. It forms part of the Symmetry range and utilises the OneCyl® interchangeable cylinder system, allowing it to be keyed alike with other Lockwood locks for convenience. The 7107 is a practical retrofit option, designed for standard 54mm deadbolt holes.
Warranty
Key Features
- OneCyl® interchangeable cylinder system
- Double cylinder – key required both sides
- Supplied with 2 keys (78,000 key combinations)
- Solid brass 25mm bolt with hardened insert

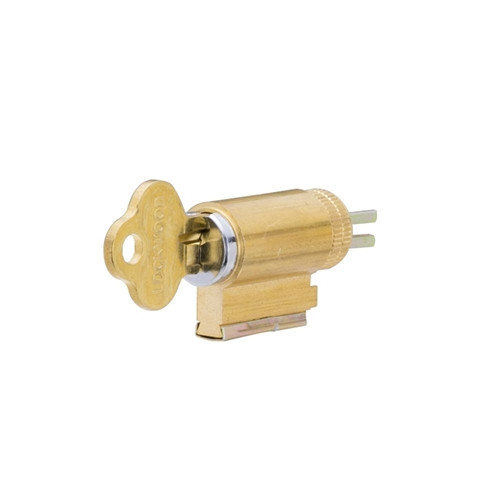

- C4 brass cylinder assembly (6-pin compatible)
- Kinetic Defence® bump and pick resistant
- Retrofits standard 54mm deadbolt hole
Specifications
- Item Code: 7107
- Type: Symmetry® Deadbolt – Double Cylinder
- Backset: Adjustable 60–70mm
- Bolt: Solid brass 25mm projection with hardened insert
- Door Thickness: 31–45mm (31–41mm requires spacer ring – included)
- Handing: Suits left or right hand opening doors
Suitable Uses
- Residential entry doors
- Doors requiring security both sides
- Applications where key control is essential
Download PDF Resources
|
Lockwood Deadbolts Catalogue |
|
Lockwood 25 Year Mechanical Warranty |
Available Finish Options
-
Polished Stainless Steel
7107PSS / 7107PSSDP -
Satin Stainless Steel
7107SSS / 7107SSSDP -
Matt Black
7107MBK / 7107MBKDP
Item Code Family
