Zanda 5906.1.SS – Stainless Steel Butt Hinge, Fixed Pin, 85 mm × 60 mm × 1.6 mm

The Zanda 5906.1 Fixed Pin Stainless Steel Butt Hinge offers a compact, durable solution for smaller doors or cabinetry where strength and corrosion resistance are essential. Made from high-quality stainless steel with a slim 1.6 mm thickness, it’s perfect for internal or light external applications requiring a neat, unobtrusive hinge.

Key Features

  • Compact size ideal for smaller or lighter doors
  • Fixed Pin for stable, long-term alignment
  • 304 Grade Stainless Steel for corrosion resistance
  • Smooth, low-profile operation for a neat finish

Specifications

  • Item Code: 5906.1.SS
  • Type: Butt Hinge — Fixed Pin
  • Dimensions: 85 mm (height) × 60 mm (width) × 1.6 mm (leaf thickness)
  • Material: 304 Grade Stainless Steel
  • Applications: Suitable for smaller internal and light external doors
  • Fire Rating: Not specified

What's In The Box

  • Stainless Steel Butt Hinge — Fixed Pin, 85 mm × 60 mm × 1.6 mm
  • Screw pack to suit timber and metal frames
  • Installation instructions

Available Finish Options

Stainless Steel finish only

Item Code Family – Zanda Hinges

Item Code Description
5901 Butt Hinge — Loose Pin, 100 mm × 75 mm × 2.5 mm
5902 Butt Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm
5903 Butt Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm (Stainless Steel or Graphite Nickel finish)
5904 Bearing Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm
5905 Bearing Hinge — Loose Pin, 100 mm × 75 mm × 3 mm
5906 Butt Hinge — Loose Pin, 85 mm × 60 mm × 2 mm
5906.1 Stainless Steel Butt Hinge — Fixed Pin, 85 mm × 60 mm × 1.6 mm
5908 Fast Fix Hinge — Timber Fix, 100 mm × 70 mm × 2.5 mm
5908.2 Fast Fix Hinge — Aluminium Fix, 100 mm × 70 mm × 2.5 mm
5909 Wide Throw Butt Hinge, 100 mm × 125 mm × 3.2 mm
5910 Butt Hinge — Fixed Pin, 100 mm × 100 mm × 2.5 mm
5911 Wide Throw Butt Hinge, 100 mm × 150 mm × 3.2 mm

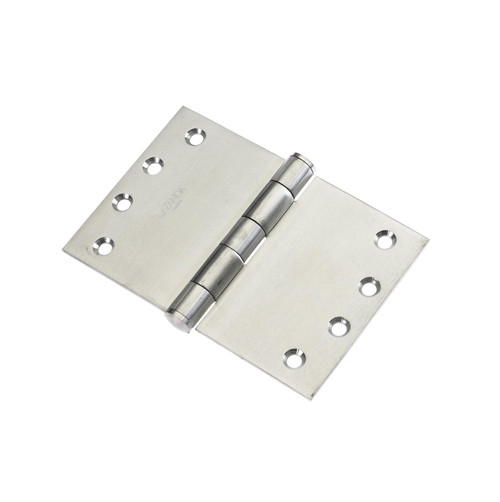

5925 Wide Throw Butt Hinge, 100 mm × 175 mm × 3.2 mm
5926 Wide Throw Butt Hinge, 100 mm × 200 mm × 3.2 mm
5927 Bearing Hinge — Fixed Pin, 100 mm × 100 mm × 2.5 mm
5928 Lift-Off Hinge — Fast Fix & Non-Handed, 100 mm × 73 mm × 2.5 mm
5929 Lift-Off Hinge — Left Hand, 100 mm × 75 mm × 2.5 mm
5939 Lift-Off Hinge — Right Hand, 100 mm × 75 mm × 2.5 mm
5970 Concealed Hinge — 25 mm × 152 mm, 150° opening, 60 kg rating (3 hinges)
5972 Concealed Hinge — 29 mm × 177 mm, 150° opening, 120 kg rating (3 hinges)
