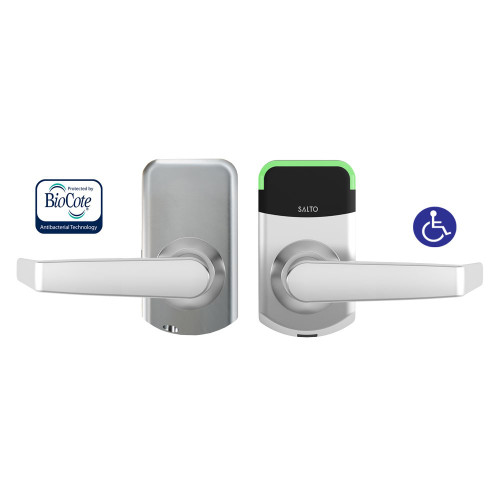

Salto XS4 Mini ANSI Escutcheon with Cylindrical Latch – D Handles – Satin Chrome
Key Features
- XS4 Mini electronic escutcheon with Hardware Security Element (HSE).
- Includes ANSI cylindrical latch with 60 mm backset.
- D handles with AS1428.1 DDA compliant lever design.
- Supports RFID, BLE, and NFC mobile credentials.
- Mechanical key override cut-out (cylinder not included).
- Compact escutcheon for simple, wire-free installation.
- Reversible handing for left or right doors.
Specifications
- Item Code: CM260D60CSB3
- Series: XS4 Mini
- Escutcheon Type: ANSI cylindrical latch version
- Backset: 60 mm
- Door Thickness: 40 mm to 47 mm
- Spindle: 8 mm square
- Handle Type: D handles
- Key Override: Cut-out provided (cylinder not included)
- DDA Compliance: AS1428.1 compliant
- Reader Colour: Black
- Finish: Satin Chrome
What's In The Box
- XS4 Mini external escutcheon with reader.
- Internal escutcheon.
- D handle set.
- ANSI cylindrical latch (60 mm backset).
- Spindle and fixing components.
Suitable Uses
- Commercial office doors.
- Healthcare and education facilities.
- Retrofit electronic access control upgrades.
- Doors requiring DDA compliant lever operation.
Dimensions
| Measurement | Size |
|---|---|
| Height | 124.5mm |
| Width | 68mm |
| Depth | 27mm |
Frequently Asked Questions
- Does this include the latch?
Yes. This model includes a 60 mm backset ANSI cylindrical latch. - Is it DDA compliant?
Yes. The D handles are compliant with AS1428.1 accessibility requirements. - Is the override cylinder supplied?
No. The key override cut-out is provided, but the cylinder must be supplied separately.
Additional Information
- Standalone electronic escutcheon designed for quick retrofit installations.
- Compatible with Salto SPACE, KS, and future platform integrations.
- Wireless capability available when used within supported Salto systems.
