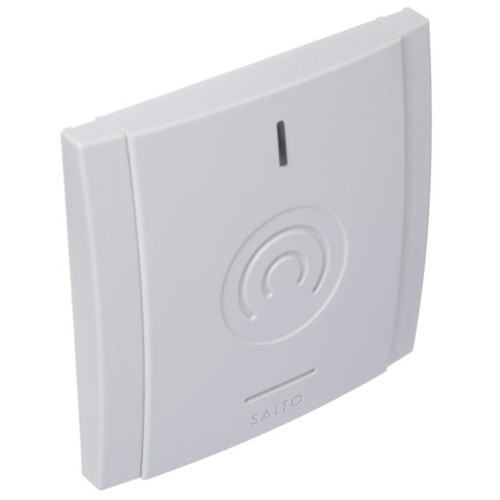

Salto XS4 2.0 WRD BLE DESFire MIFARE Reader - Rectangular - White
Key Features
- Rectangular wall reader from the Salto XS4 2.0 range.
- Supports MIFARE and DESFire RFID credentials.
- Bluetooth Low Energy and NFC mobile credential support.
- Integrated acoustic and optical status indicators.
- Green/red LED for access status and blue LED for key updates.
- Surface mounted with concealed fixing screws.
- Virtual Network capable using Salto Data-on-Card technology.
Specifications
- Item Code: WRDB0A4W
- Product Type: Wall reader
- Series: XS4 2.0
- Mounting: Surface mount
- Card Technologies: MIFARE, DESFire
- Mobile Credential Support: NFC and Bluetooth Low Energy
- Connection to Controller: 4-wire twisted pair
- Maximum Cable Distance: Up to 400 metres
- Reading Distance: 35 to 50 mm
- Ingress Protection: IP66
- Finish: White
What's In The Box
- Salto XS4 2.0 wall reader.
- Fixing screws.
Suitable Uses
- Commercial and institutional access control doors.
- Integration with Salto XS4 2.0 controllers.
- Installations using RFID cards, fobs, or mobile credentials.
- Indoor or sheltered outdoor applications requiring IP66 protection.
Dimensions
| Measurement | Size |
|---|---|
| Height | 141mm |
| Width | 95.5mm |
| Depth | 29.5mm |
Item Code Family
| Item Code | Model | Type | Connectivity | Finish |
|---|---|---|---|---|
| CU42E0AUS | XS4 2.0 Ethernet Online Control Unit | Controller | Ethernet (RJ45) | White |
| CU4200AUS | XS4 2.0 Offline/Auxiliary Control Unit | Controller | Offline / Auxiliary | White |
| WRDB0A4W | XS4 2.0 WRD BLE DESFire MIFARE Reader - Rectangular | Reader | 4-wire to controller | White |
| SP224861 | CU42xx RJ45 Connecting Circuit Adaptor | Adaptor | RJ45 interface adaptor | N/A |
Frequently Asked Questions
- Does this reader support mobile credentials?
Yes. It supports both Bluetooth Low Energy and NFC mobile credentials. - Can this be used without a controller?
No. It must be connected to a compatible Salto controller. - Is this suitable for outdoor use?
It has an IP66 rating and can be used in exposed or semi-outdoor locations.
Additional Information
- Designed to work with Salto XS4 2.0 or compatible controllers.
- Commonly installed on perimeter doors, lift lobbies, or controlled access points.
- IP66 rating supports more demanding environments.
