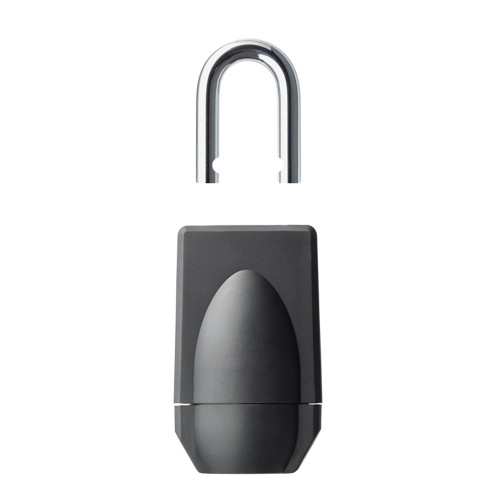

Salto Neoxx G4 Padlock with Chain - Mifare - BLE + HSE Reader (IP68) - Black
The Salto Neoxx G4 electronic padlock is designed for field and infrastructure environments where a conventional electronic handle set is not practical. This model is supplied with a shackle chain, supports Mifare and DESFire credentials, and is rated IP68 for water and dust protection in harsh conditions.
Important: SP226009 removal knob tool is required for all NEOxx padlocks.
Key Features
- SVN data-on-card and Salto BLUEnet wireless network capable.
- Encrypted communications between credential and padlock.
- Optical signalling via light ring with green/red status indication.
- IP68 certified for water resistance and dust protection.
- Attack resistance certified to EN16864:2018 (mechatronic certification).
- Cover case with double-layered structure for durability.
- Supplied with shackle chain for gate, storage and field access applications.
Specifications
- Item Code: NMP4P60150CPB1
- Brand: Salto
- Product Type: Electronic padlock with shackle chain
- Finish: Black
- Reader Colour: Black
- IP Rating: IP68
- Weather Resistant: Yes
- Wireless Connectivity: Yes
- Works with Bluetooth/BLE: Yes
- Accepts RFID Cards/Fobs: Yes
- Accepts Smartphone NFC and/or BLE: Yes
- Card Format: Mifare, DESFire
- Battery Type and Quantity: 4 × LR1 (N) alkaline
- Maximum Audit Events: 2,200 events (non-volatile memory)
- Padlock Body Size: 60 mm
- Shackle Diameter: 11 mm
- Vertical Shackle Clearance: 50 mm
- Horizontal Shackle Clearance: 28 mm
- Comes With Shackle Chain: Yes
What’s In The Box
- 1 × Salto Neoxx G4 electronic padlock
- 1 × Shackle chain assembly
Suitable Uses
- Utility and infrastructure sites such as power stations, communications sites and service compounds.
- Gates, storage areas and external plant locations needing controlled access without fixed door hardware.
- Industrial and field environments where dust and water exposure is expected.
- Sites wanting auditability and credential-based access instead of shared mechanical keys.
Dimensions
| Measurement | Value |
|---|---|
| Overall Dimensions | 70 mm × 174 mm × 32 mm |
| Padlock Body Size | 60 mm |
| Vertical Shackle Clearance | 50 mm |
| Horizontal Shackle Clearance | 28 mm |
| Shackle Diameter | 11 mm |
Frequently Asked Questions
- Is this padlock suitable for outdoor and harsh environments?
Yes. This model is rated IP68 for water and dust protection and is described as suitable for harsh environments and extreme climates. - What credentials can be used to open the padlock?
It supports Mifare and DESFire RFID credentials and also supports smartphone access using NFC and Bluetooth/BLE where configured. - Do I need any special tool for battery servicing?
Yes. SP226009 removal knob tool is required for all NEOxx padlocks.
Additional Information
- This padlock format is commonly specified where doors and gates do not have a conventional lock body or where retrofitting fixed electronic hardware is impractical.
- In field deployments, credential management and audit retrieval are typically handled through the nominated Salto platform (such as SPACE or KS) and the site’s chosen wireless strategy.
- Where the padlock is used on high value assets, consider access rules such as time schedules, user roles and event review to reduce shared-key risk.
