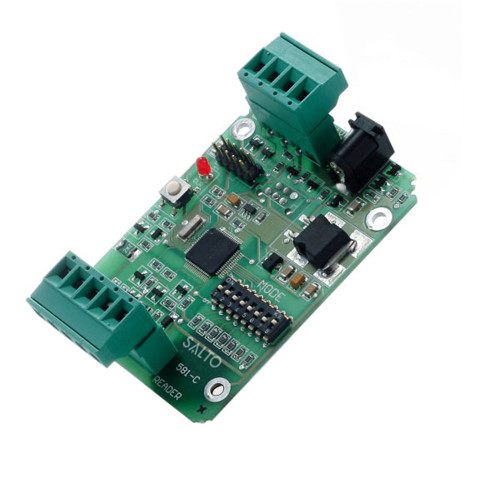

Salto Control Unit

Salto Control Unit

SALTO offers a wide range of door controllers that extend SALTO access control benefits to doors where a standalone electronic escutcheon cannot be fitted, such as electric strikes, maglocks, barriers, lifts, shutters, automatic door openers and boom gates.

The control units read encrypted data from the carrier and allow updating via SALTO Virtual Network technology, enabling remote cancellation of lost or stolen cards.

Key Features

• Available in Off-Line and On-Line IP models
• Two wall reader connections for read in and read out locking
• Anti Pass Back mode when using two wall readers
• Two relay outputs
• Request to Exit switch input
• Door state and tamper monitoring inputs
• Compatible with SALTO relay extension board EB5008 for up to 128 relay outputs
• Supports SALTO WRMKP for dual identification

Compatibility

• To be used with all SALTO wall readers
• Compatible with SALTO WRMKP keypad reader
• Compatible with SALTO relay extension board EB5008

Full Specifications

Frequently Asked Questions

• What is the difference between CU5000 and CU50EN?
  CU5000 is an Off-Line control unit, while CU50EN is an On-Line IP control unit for real time access control.
• How many doors can each unit control?
  Each control unit manages one door.
• How many relay outputs are available?
  Both variants provide two relay outputs.

Additional Information

• Ideal for applications where escutcheons cannot be installed
• Suitable for electric strikes, maglocks, lifts and barriers
• Expandable via SALTO relay extension board
