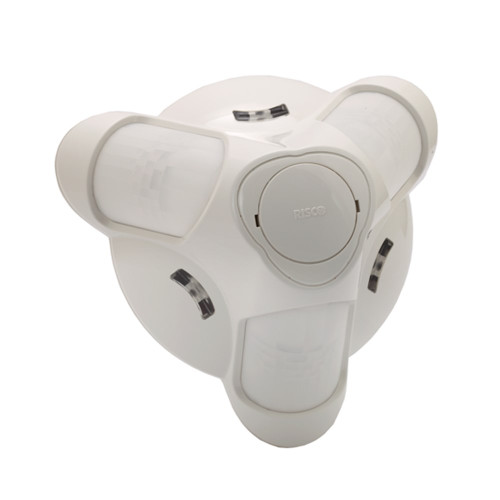

Risco Lunar Grade 2 360 Degree PIR Ceiling Mount Detector 12 Metre Range White RK2000DPC00B
The Risco Lunar PR 360 degree ceiling mount digital PIR detector is designed with state of the art components to ensure reliable operation across a wide range of residential and commercial security applications. It provides a full 360 degree overview with a wide 110 degree angle and includes dual element pyroelectric sensing technology for accurate motion detection.
The Lunar series offers strong RFI and EMI protection, intelligent digital signal processing, and true temperature compensation for consistent performance in changing environments. Built in end of line resistors support flexible alarm wiring configurations.
Key Features
- Ceiling mount 360 degree digital PIR detector for wide area coverage.
- Grade 2 compliance under EN50131 and PD6662 requirements.
- Dual element PIR sensor with intelligent digital signal processing.
- True digital temperature compensation for stable detection performance.
- Built in end of line resistors for simplified wiring options.
- Coverage up to 12 metre diameter with 110 degree detection angle.
Specifications
- Item Code: RK2000DPC00B
- Brand: Risco
- Detector Type: Ceiling mount 360 degree PIR
- Grade: Grade 2 (EN50131, PD6662)
- PIR Sensor: Dual element
- Coverage: 360 degree, 12 metre diameter
- Mounting Height: 2.8 metres to 4 metres
- Built In Resistors: End of line resistors included
- Finish: White
What's In The Box
- Risco Lunar PR 360 degree ceiling mount PIR detector
- Installation instructions
Suitable Uses
- Residential ceiling mounted intrusion detection
- Commercial office and retail space security coverage
- Wide open indoor areas requiring 360 degree detection
- Grade 2 compliant alarm system installations
Dimensions
Download PDF Resources
|
Risco Lunar PIR Installation Instructions |
Frequently Asked Questions
- What area does this detector cover?
This model provides 360 degree coverage up to a 12 metre diameter detection area. - Is this suitable for Grade 2 alarm systems?
Yes, it is specified as Grade 2 compliant under EN50131 and PD6662 standards. - Does it include end of line resistors?
Yes, built in end of line resistors are included for wiring flexibility.
Additional Information
- Detection performance depends on correct mounting height, environment, and installation setup.
- End of line resistor settings should be configured to match the alarm panel wiring requirements.
- Suitable for indoor ceiling mounted use in open coverage zones.
Technical Drawing
