Available Variants: Model - Grade 2 Dual Tech, Grade 3 Quad PIR, Grade 3 Dual Tech - Anti-Mask

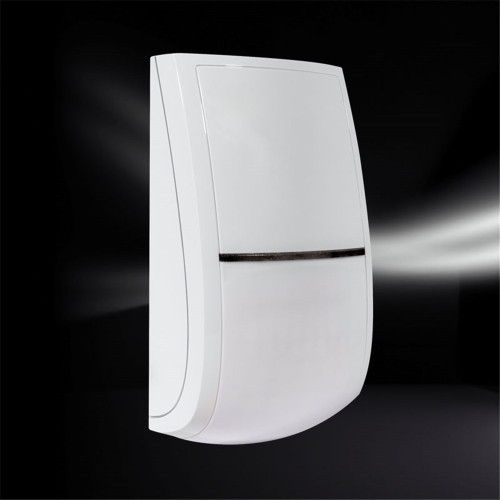

BWare™, RISCO Group’s state-of-the-art professional detector series, scores high points for its elegant and modern design in addition to its advanced technology and reliability.
Incorporating RISCO Group’s unique Anti-Cloak™ Technology for detecting cloaked burglars, BWare™ DT also utilizes K-band microwave technology for reducing false alarms. The BWare™ Bus models save installation time and cost, and can be remotely serviced using the RISCO Bus.
The BWareâ„¢ series is ideal for a wide range of commercial and high security applications, with Grade 2 and Grade 3 versions of Dual Technology, QUAD and RISCO Bus models available.
| Technical Specifications | |
| EN50131 | Grade 2, Class II |
| Coverage | 15m 90° |
| Mounting Height | 2.1m - 3.3m |
| Detection Sensors | K-Band Microwave PIR |
| Anti-Cloakâ„¢ Technology (ACT) | Yes |
| Lens Type | Convex Fresnel Lens |
| Green Lineâ„¢ Technology | Yes |
| Anti-Mask detection method | No |
| Extra Zone Input for Bus models | Yes |
| Built-in EOL resistors for Relay models | Double EOL |
| Tampers | Gold plated wall & cover tamper |
| LED & Set Inputs | Yes |
| White Light Optical Filtering | Pigmented PIR covers |
| Temperature Compensation | Patented True Temperature Compensation |
| Operating Voltage: | 9 to 16VDC |
| Current Consumption at 12VDC | 16mA (typical) 39mA (max.) |
| Output Contacts: 100mA, 24V, N.C | Alarm, Tamper |
| RF immunity: 10MHz to 3GHz | According to EN50130-4 |
| Operating Temperature: | -20° C to 55° |
| Storage Temperature: | -20° C to 60° |
| Dimensions (HxWxD) | 120 x 64 x 40 mm |
Type of Detector: Dual Tech Detector
