Raven RP78Si Single Door Set Perimeter Seal with Gaskets - Clear Anodised

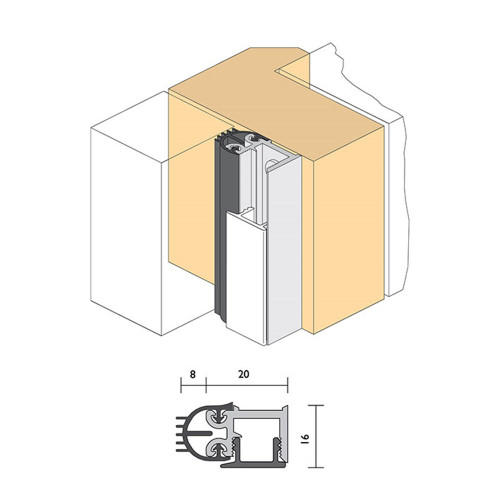

The Raven RP78Si is an acoustic medium temperature smoke door frame seal designed for installation onto door stops at the head and jambs. It features a sturdy aluminium carrier with slotted adjustment and concealed fixings, allowing installation without removing the door.
Suitable for commercial and fire door applications, the RP78Si is commonly specified where acoustic control and smoke containment are required.
Key Features
- Acoustic and medium temperature smoke frame seal
- Adjustable slotted aluminium carrier
- Concealed screw fixing with cover strip
- Can be mitred or butt jointed for clean installation
- Install without removing the door
- Suits 0 mm to 6 mm perimeter gaps
Compatibility
- Location: Head and jambs of single and double butt hinged doors
- Designed for installation on door stops
- Compatible with Raven automatic door bottom seals including RP8Si, RP16Si, RP35Si, RP38Si, RP99Si, RP126Si, RP127Si and RP128Si
Full Specifications
| Brand | Raven |
| Product Code | RP78Si |
| Primary Item Code | RP78SILSDSCA |
| Seal Type | Frame Seal |
| Seal Insert | RP394Si grey or light grey silicon rubber (SE) |
| Finish | Clear Anodised Aluminium (15 micron) |
| Gap Range | 0 mm to 6 mm |
| Fixing | Concealed screw fixing. Zinc plated cross recess head self tapping screws and cover strip supplied. |
| Fire Rated | Yes |
| Door Seal Set | Long Single Door (1 x 1000 mm, 2 x 2750 mm) |
All available variants included:
- RP78SILSDSCA: 1 x 1000 mm and 2 x 2750 mm (Long Single Door Set)
- RP78SISDSCA: 1 x 1000 mm and 2 x 2100 mm (Standard Single Door Set)
Whats in the Box
- 3 x aluminium perimeter seal lengths (door set configuration)
- RP394Si silicon gasket pre inserted
- Fixing screws and cover strip
Dimension
| Item Code | Configuration |
|---|---|
| RP78SILSDSCA This model |
1 x 1000 mm and 2 x 2750 mm |
| RP78SISDSCA | 1 x 1000 mm and 2 x 2100 mm |
Item Code Family
| Product | Item Code | Configuration / Size |
|---|---|---|
| Raven RP78Si Single Door Set Perimeter Seal with Gaskets - Black This model |
RP78SILSDSCA | 1 x 1000 mm and 2 x 2750 mm |
| Raven RP78Si Single Door Set Perimeter Seal with Gaskets - Black | RP78SISDSCA | 1 x 1000 mm and 2 x 2100 mm |
| Raven RP78Si Perimeter Seal with Gaskets - Black (Stock Length) | RP78SIX1000CA | 1000 mm |
| Raven RP78Si Perimeter Seal with Gaskets - Black (Stock Length) | RP78SIX1250CA | 1250 mm |
| Raven RP78Si Perimeter Seal with Gaskets - Black (Stock Length) | RP78SIX1500CA | 1500 mm |
| Raven RP78Si Perimeter Seal with Gaskets - Black (Stock Length) | RP78SIX2000CA | 2000 mm |
| Raven RP78Si Perimeter Seal with Gaskets - Black (Stock Length) | RP78SIX2250CA | 2250 mm |
| Raven RP78Si Perimeter Seal with Gaskets - Black (Stock Length) | RP78SIX2500CA | 2500 mm |
Frequently Asked Questions
- Is the RP78Si suitable for fire rated doors?
Yes. It is approved for use in fire door assemblies in accordance with AS1530.4 and AS/NZS 1905.1 when installed as tested. - Can this be installed without removing the door?
Yes. The seal is designed for installation around the head and jambs without removing the door leaf. - What gap can this seal accommodate?
It is designed to seal perimeter gaps between 0 millimetres and 6 millimetres.
Additional Information
- Commonly specified in Australian commercial and institutional projects for acoustic and smoke performance.
- When combined with a compatible Raven automatic bottom seal, a continuous perimeter seal can be achieved.
- Mitred installation is preferred for higher aesthetic requirements, while butt joints allow faster site fitting.
