Raven RP70Si Auto Bottom Seal For Morticed Mount - Clear Anodised
The Raven RP70Si is a heavy duty, fully morticed automatic bottom door seal designed for fire, smoke and acoustic control applications. It is spring loaded to lift clear of the floor when the door is opened.
The seal is self levelling and reversible for left and right handed doors. Operation is automatic via pressure against the door jamb using an adjustable brass strike.
Key Features
- Fully morticed heavy duty automatic door bottom seal
- Spring loaded mechanism lifts clear when door opens
- Self levelling and reversible operation
- Suitable for smoke and fire door applications
- High efficiency mechanism to assist AS1428.1 compliance
- Tested to over 1,000,000 operating cycles
Compatibility

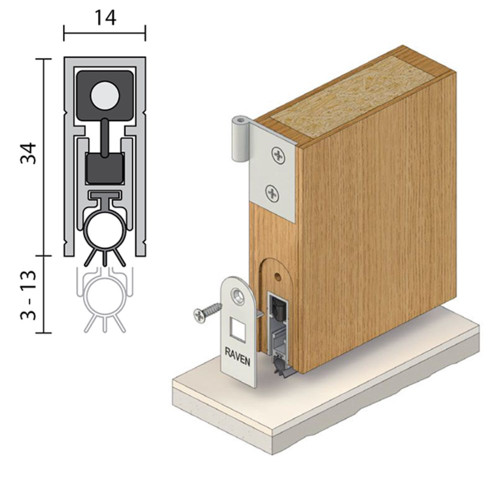

- Location: Fully morticed into the bottom of single and double butt hinged doors
- Minimum door thickness: 45 mm
- For double doors, plain meeting stiles required
- Min/Max gap: 3 mm to 13 mm
Full Specifications
| Brand | Raven |
| Product Code | RP70Si |
| Door Seal Type | Automatic Bottom Door Seal |
| Finish | Clear Anodised 15 micron |
| Seal | RP338Si grey silicon rubber |
| Operation | Automatic via adjustable brass strike |
| Fire Rated | Yes |
| Door Seal Set | Individual Seal |
All available variants included:
- RP70SIX450CA: 450 mm
- RP70SIX610CA: 610 mm
- RP70SIX920CA: 920 mm
- RP70SIX1067CA: 1070 mm
- RP70SIX1220CA: 1220 mm
Available Finish Color
- Clear Anodised
Whats in the Box
- 1 x Raven RP70Si Automatic Bottom Seal
- Adjustable brass strike
- Escutcheon plates
- Fixing screws
Dimension
| Item Code | Length |
|---|---|
| RP70SIX1067CA This model |
1070 mm |
| RP70SIX1220CA | 1220 mm |
| RP70SIX450CA | 450 mm |
| RP70SIX610CA | 610 mm |
| RP70SIX920CA | 920 mm |
Frequently Asked Questions
- Is the RP70Si fire rated?
Yes. It is approved to AS1530.4 and AS/NZS 1905.1 and achieves FRL and FRR ratings when installed in approved assemblies. - Can the seal be cut to size?
Yes. Seals can be cut back to exact size during installation. - Is it suitable for double doors?
Yes, provided plain meeting stiles are used.
Additional Information
- Minimum door thickness of 45 mm required.
- High efficiency mechanism assists compliance with AS1428.1.
- Tested to over 1,000,000 operating cycles for durability.
