Raven RP10 Perimeter Seal Frame Stop with Gaskets - Black

Raven RP10 Perimeter Seal Frame Stop with Gaskets

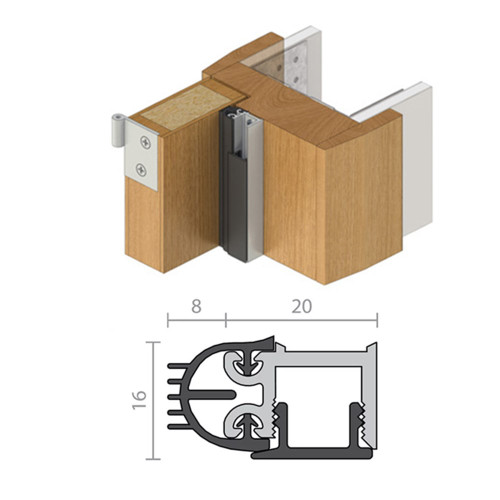

The Raven RP10 is an effective acoustic door stop frame seal designed for installation on plain or rebated timber and steel door frames. Its multi-fin profile improves noise and energy sealing performance while the minimum deflection design maximises sealing efficiency.

RP10 can be mitred or butt jointed for a neat finish. Concealed slotted fixing holes allow precision adjustment and the rigid PVC cover strip provides tamper resistance. It can be installed on all four sides of the door frame to form a bulk head seal.

Key Features

• Acoustic perimeter frame seal.
• Multi-fin design for improved sound and draught control.
• Adjustable concealed fixing slots.
• Tamper resistant rigid PVC cover strip.
• Suitable for timber and steel door frames.

Compatibility

• Location: Head and jambs of single and double butt hinged doors.
• Min/Max Gap: 0 mm to 10 mm.
• Frames: Plain or rebated door frames.
• Note: If fixing to rebated frames of single doors, specify a long backset door latch.

Full Specifications

Whats in the Box

• 1 x RP10 perimeter seal length
• Fixing screws
• Rigid PVC cover strip

Frequently Asked Questions

• What gap does RP10 seal?
  It seals gaps from 0 mm up to 10 mm.
• Can it be installed on all sides of the frame?
  Yes, it can be used on all four sides to create a bulk head seal.
• Is it fire rated?
  Yes, it complies with NCC and relevant AS fire test standards when installed in approved assemblies.

Additional Information

• Registered design.
• Suitable for commercial, institutional and healthcare projects requiring acoustic compliance.
• Ensure correct latch backset when installing on rebated frames.
