Raven RP10 Double Door Set Perimeter Seal Frame Stop with Gaskets
The Raven RP10 Double Door Set is a compact aluminium door stop frame seal designed to provide effective acoustic performance. It installs directly onto the door frame and features concealed slotted fixings for accurate adjustment and a precision fit.
Its multi blade sealing fins significantly reduce leakage of noise and air movement. The minimum deflection design maintains sealing efficiency and accommodates long term door movement. The seal can be mitred or butt jointed for a clean integrated appearance.
Key Features
- Acoustic perimeter seal for double doors.
- Multi blade fin design reduces air and noise leakage.
- Adjustable concealed fixing slots.
- Mitre or butt joint installation options.
- Neat compact aluminium frame stop profile.
Compatibility
- Application: Double butt hinged doors.
- Frame Type: Plain or rebated frames.
- Gap Range: 0 mm to 10 mm.
- Note: If fixing to rebated frames of single doors, specify a long backset door latch.
Full Specifications
Whats in the Box
- Standard Double Door Set: 3 x 2100 mm lengths (head and jambs)
- Fixing screws
- Rigid PVC cover strip

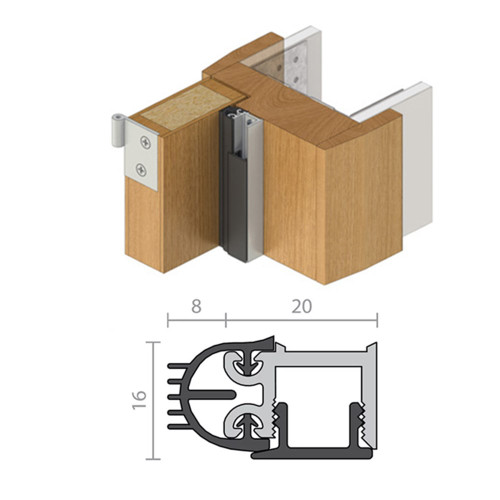

Dimension
Frequently Asked Questions
- Can the seal be mitred?
Yes, it can be mitred or butt jointed to suit installation requirements. - What gap does it seal?
It is designed to seal gaps from 0 mm to 10 mm. - Is it fire rated?
Yes, it complies with NCC and relevant AS fire testing standards when installed in approved assemblies.
Additional Information
- Designed for acoustic performance in commercial applications.
- Concealed slotted fixings allow precision adjustment.
- Large tolerance for door movement over time.
Raven Limited Warranty
Raven products are covered against defects in materials and workmanship for 12 months from retail purchase, subject to proof of purchase and warranty terms. View full warranty details: Raven Warranty Information
