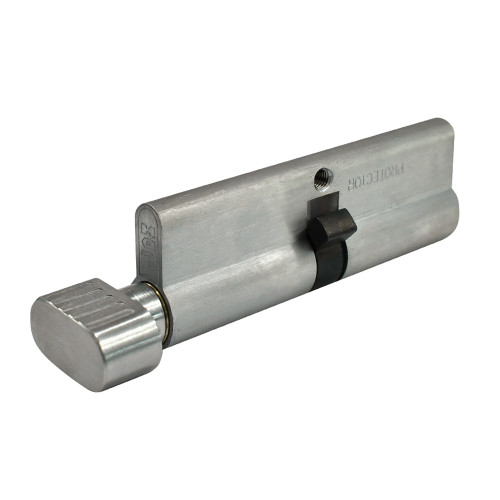

Protector Euro Single Cylinder and Turn with Fixed Cam LW5 Profile KA 70mm

Protector Euro Single Cylinder and Turn with Fixed Cam LW5 Profile KA 70mm

Protector

$69.16
(No reviews yet) Write a Review
SKU:
STK PCT706PKAPB PCT706KASC
UPC:
1394818148798
Availability:
Usually same day dispatch (if ordered before 11am)
Adding to cart… The item has been added
Protector Logo

Protector Euro Single Cylinder and Turn with Fixed Cam LW5 Profile Keyed Alike 70mm

Protector series euro single cylinder with turn, 6 pin LW5 profile and fixed cam. Supplied keyed alike with 2 keys and supplied boxed.

Key Features icon Key Features

  • Fixed cam euro cylinder with internal turn.
  • LW5 6 pin cylinder.
  • Keyed alike configuration.
  • Supplied with 2 keys.
  • Overall length 70 millimetres excluding turn.
  • Supplied boxed (retaining screw not supplied).

Compatibility icon Compatibility

  • Commonly used with euro profile mortice locks that accept fixed cam cylinders.
  • Suits applications requiring key outside and turn inside operation.

Specifications icon Full Specifications

Brand Protector
Item Code PCT706PKAPB
Single Euro Cylinder with Turn Yes
Cylinder Length 70 millimetres (excluding turn)
Body Size 35 millimetres / 35 millimetres + turn 21 millimetres
Key Profile LW5
Number of Pins 6
Euro Cam Type Fixed Cam
Keying Keyed Alike
AS1428.1 Compliant Turnsnib No
Included 2 keys (retaining screw not supplied)
Available Finishes Polished Brass, Satin Chrome

Finish icon Available Finish Options

Polished Brass swatch
Polished Brass
PCT706PKAPB
Satin Chrome swatch
Satin Chrome
PCT706KASC

Contents icon Whats In The Box

  • Euro single cylinder with turn (fixed cam).
  • 2 keys (keyed alike).
  • Supplied boxed.

Dimension icon Dimension

Cylinder Length 70 millimetres (excluding turn)
Body Size 35 millimetres / 35 millimetres + turn 21 millimetres

Item Code Icon Item Code Family

Profile Item Code Size Finish
LW4 KA PCT1005PKACP 100 mm Chrome Plated
LW4 KA PCT705PKACP 70 mm Chrome Plated
LW4 KA PCT905PKACP 90 mm Chrome Plated
LW4 KA PCT70KAPB 70 mm Polished Brass
LW4 KA PCT1005PKASC 100 mm Satin Chrome
LW4 KA PCT90KASC 90 mm Satin Chrome
LW4 KD PCT70CP 70 mm Chrome Plated
LW4 KD PCT90MB 90 mm Matt Black
LW4 KD PCT90NP 90 mm Nickel Plate
LW5 KA PCT1006PKASC 100 mm Satin Chrome
LW5 KA PCT906SC 90 mm Satin Chrome
LW5 KA PCT706PKAPB 70 mm Polished Brass
LW5 KA PCT706KASC 70 mm Satin Chrome

FAQ icon Frequently Asked Questions

  • Does this include the cylinder retaining screw?
    No. The cylinder retaining screw is not supplied.
  • Is this cylinder keyed alike?
    Yes. It is supplied keyed alike.
  • What is the difference between the two item codes listed?
    The difference is finish only - Polished Brass or Satin Chrome. The mechanical specification is the same.

Additional Information icon Additional Information

  • If you are matching to existing locks, confirm LW5 key profile before ordering.
  • For replacement work, retaining screw length varies by lock body - reuse the original screw or source the correct one separately.
  • Finish choice does not change cylinder size, cam type or keying.
