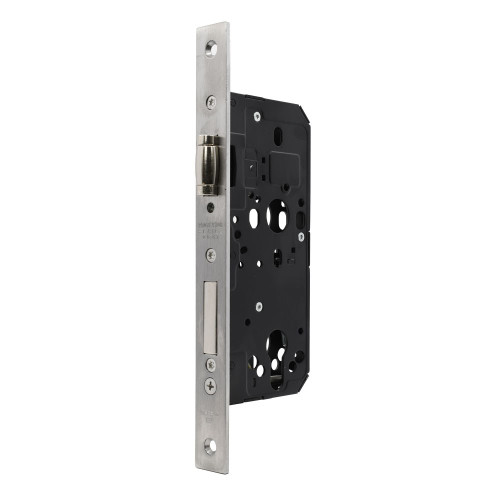

Protector 412 Series Euro Cylinder Roller Bolt Mortice Sash Lock Backset 30mm

Protector 412 Series Euro Cylinder Roller Bolt Mortice Sash Lock Backset 30mm

Heavy duty euro style roller bolt mortice sash lock with 30 mm backset, designed for secure narrow stile applications.

Key Features

• Euro cylinder operated mortice lock with roller bolt.
• 30 mm backset.
• Adjustable roller operates independently from cylinder.
• Single throw 16 mm deadbolt.
• Key retracts bolt.
• Incorporates fixed cam euro style cylinder (not included).
• Supplied with euro cylinder retaining screw.
• Supplied with black plastic escutcheons, strike plate and fixing screws.
• Supplied boxed.

Compatibility

• Compatible with fixed cam euro profile cylinders.
• Suitable for doors prepared for 30 mm backset mortice locks.
• Designed for Protector 412 Series applications.

Full Specifications

Available Finish Options

Satin Brass

Satin Stainless Steel

Whats In The Box

• Protector 412 Series roller bolt mortice sash lock body.
• Strike plate.
• Euro cylinder retaining screw.
• Black plastic escutcheons.
• Fixing screws.

Item Code Family

Frequently Asked Questions

• Is the euro cylinder included?
  No. The euro cylinder must be purchased separately.
• Is the roller adjustable?
  Yes. The roller operates independently from the cylinder and is adjustable.
• What door type is this suitable for?
  It is suitable for doors prepared for a 30 mm backset mortice lock.

Additional Information

• Ensure correct backset measurement before ordering.
• Designed for fixed cam euro profile cylinder installations.
• Professional installation recommended for optimal performance.
