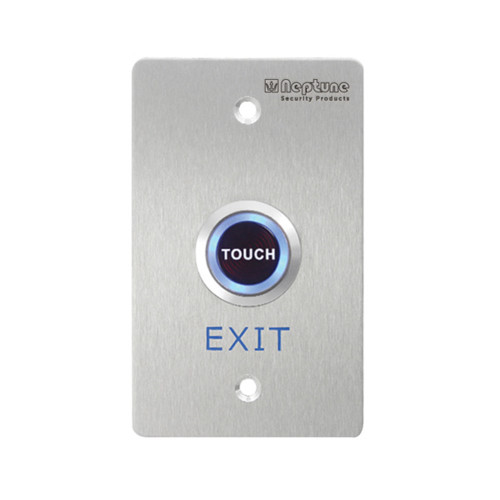

Neptune Touchless Exit Button - ANSI Plate - Stainless Steel
The Neptune touchless exit button provides hygienic access control door release using an infrared proximity sensor. When a hand is detected within range, the sensor activates the relay to unlock the door without physical contact. The stainless steel ANSI style plate is suitable for commercial door installations.
Key Features
- Touchless infrared exit button.
- ANSI stainless steel face plate.
- LED indicator for standby and activation.
- Detection range approximately 8 cm.
- NO / NC / COM relay output.
- Designed for access control systems.
- Suitable for hygienic environments.
Compatibility
- Compatible with most access control systems.
- Works with electromagnetic locks and electric strikes.
- Suitable for commercial doors and controlled entry systems.
- Designed for standard ANSI mounting positions.
Full Specifications
Whats in the Box
- Neptune touchless exit button
- Mounting hardware
- Installation guide
Dimension
Item Code Family
| Item Code | Product | Specification |
|---|---|---|
| Neptune Touch To Exit - ANSI - NO/NC/C - LED - Stainless Steel | ||
| NETACLB | Neptune Touch To Exit Button | 0.9 mm |
| NETACLS | Neptune Touch To Exit Button | 1.7 mm |
| Neptune Touchless Exit - ANSI - NO/NC/C - LED - Stainless Steel | ||
| NENACLB | Neptune Touchless Exit Button | 0.9 mm |
| NENACLS | Neptune Touchless Exit Button | 1.7 mm |
| Neptune Touchless Exit - ANSI - NO/NC/C - LED - 12/24V - Stainless Steel | ||
| NENACLBD | Neptune Touchless Exit Button | 0.9 mm Silver |
| NENACLSDB | Neptune Touchless Exit Button | 1.7 mm Black |
| Neptune Touchless Exit - Mullion - NO/NC/C - LED - 1.7 mm | ||
| NENMCLS | Neptune Touchless Exit Mullion | Stainless Steel |
| NENMCLSDB | Neptune Touchless Exit Mullion | Black |
Download PDF Resources
|
Neptune Touchless Exit Button Installation Guide |
Frequently Asked Questions (FAQ)
- How does the touchless exit button work?
The infrared sensor detects a hand within approximately 8 cm and activates the relay to release the door. - Can it be used with magnetic locks?
Yes. The NO / NC / COM relay output allows integration with maglocks and electric strikes. - Where is this button typically installed?
It is commonly installed beside controlled doors in offices, hospitals and commercial buildings.
Additional Information
- Touchless exit buttons reduce contact points in high traffic environments.
- LED indicators provide clear standby and activation status.
- Designed for modern hygienic access control installations.
Neptune Warranty
Neptune Security Products are covered by a 3 year manufacturer warranty against defects in materials and workmanship from the date of purchase. For full warranty terms and conditions please refer to the official Neptune document here.
