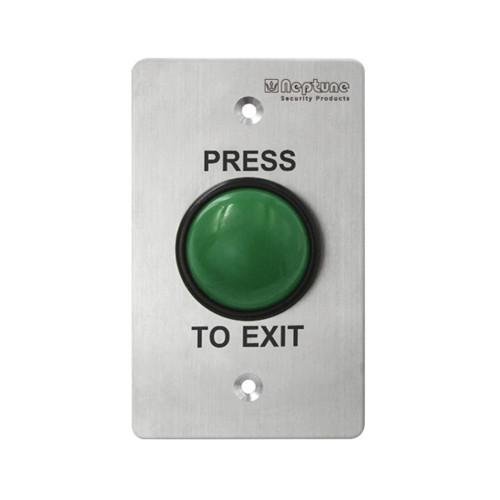

Neptune Press To Exit Button - IP55 Stainless Steel
The Neptune NEPAWCLS is a stainless steel press to exit button designed for access control door release applications. It features an IP55 rating, blue LED indicator, and standard NO/NC/COM contacts for flexible system integration.
Key Features
- Press to exit push button with blue LED indicator.
- IP55 rated for indoor or sheltered outdoor use.
- NO, NC, and common output contacts.
- 1.7 mm thick 304 stainless steel faceplate.
- ANSI size plate with standard fixing centres.
- Mechanical life tested to 100,000 operations.
- Optional surface mounting using NEASMB back box.
Specifications
- Item Code: NEPAWCLS
- Finish: Stainless Steel
- Material: 304 stainless steel
- Plate Thickness: 1.7 mm
- Contact Rating: 3 amp at 125 to 250 VAC
- Operating Voltage: 12 VDC
- Output Contacts: NO, NC, COM
- LED Indicator: Yes, blue
- IP Rating: IP55
- Mechanical Life: 100,000 operations
- Operating Temperature: -20°C to 55°C
- Operating Humidity: 0 to 95% relative humidity
- Installation Hole Diameter: 19 mm
- Fixing Centres: 83 mm
- Text on Plate: PRESS TO EXIT
- Operation: Touch
What's In The Box
- 1 x press to exit button assembly
Suitable Uses
- Access control exit release points.
- Commercial and industrial doors.
- Internal or sheltered external installations.
Dimensions
| Length | 115 mm |
| Width | 70 mm |
| Depth | 40 mm |
Frequently Asked Questions
- Can this button be used outdoors?
It is rated to IP55, making it suitable for indoor or sheltered outdoor locations. - What contact types are available?
The button provides normally open, normally closed, and common contacts. - Is a back box required?
A back box is optional. The NEASMB metal back box can be used for surface mounting.
Additional Information
- Commonly installed alongside electric strikes or magnetic locks for controlled egress.
- Blue LED assists with button visibility in low-light environments.
- Always confirm compliance with local egress and fire safety regulations when selecting exit hardware.
