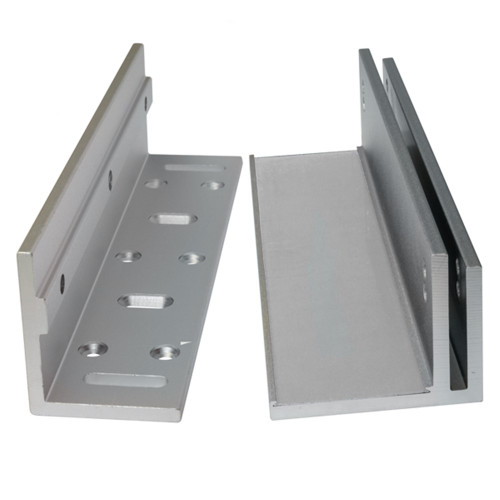

Neptune L & Z Bracket
The Neptune L & Z Bracket kit provides a mounting solution for magnetic locks installed on inward opening doors. The bracket set allows the magnet and armature plate to be mounted correctly when standard door frame installation is not possible.
Designed for Neptune magnetic lock systems, the adjustable aluminium bracket set provides a strong and reliable mounting configuration for professional access control installations.
Key Features
- Adjustable L and Z bracket mounting kit
- Designed for inward opening doors
- Suitable for Neptune magnetic lock systems
- Heavy duty aluminium construction
- Available in satin anodised silver or black finish
- Professional installation solution for access control systems
Compatibility
- Neptune NEML280 series magnetic locks
- Neptune NEML500 series magnetic locks
- Inward opening door installations
- Commercial access control door systems
Full Specifications
| Brand | Neptune |
| Bracket Type | L & Z Magnetic Lock Bracket |
| Material | Aluminium |
| Finish | Satin anodised / Black |
| Weight | 0.75 kg |
What's in the Box
- 1 × L bracket
- 1 × Z bracket
- Mounting hardware
Dimensions
| L Bracket Length | 249 mm |
| L Bracket Width | 48 mm |
| L Bracket Height | 28.5 mm |
| Z Bracket Length | 180 mm |
| Z Bracket Width | 50 mm |
| Z Bracket Height | 50 mm |
Frequently Asked Questions (FAQ)
- When is an L & Z bracket required?
L & Z brackets are used when installing magnetic locks on inward opening doors where the armature plate cannot be mounted directly on the door frame.
- How many brackets are needed for double door installations?
Double door magnetic lock installations normally require two bracket sets.
- Which magnetic locks are compatible?
This bracket set is designed for Neptune NEML280 and NEML500 magnetic lock series.
Additional Information
- Designed for professional access control installations.
- Provides correct mounting alignment for inward opening doors.
- Heavy duty aluminium construction for long term durability.
Warranty
- Manufacturer warranty applies to defects in materials and workmanship.
