The Neptune 5AMP Power Supply offers exceptional value for money. Ideal for smaller installation applications, the Neptune power supply has a lockable enclosure that is small and compact but has enough room to house a 12V 7AH battery to provide backup when required.
This kit includes a NEPSM4OUT 4 output module which is easily installed inside the 5AMP power supply using the provided screws and standoffs. The module has 4 individually fused outputs, each with a replaceable 1A fuse and LED indicators on each output.
Battery not included.
The Neptune Power Supply has been fully tested to meet all Australian standards so it is a must have for any electronic equipment installer.
Kit Includes:
1 x Neptune 12VDC 5Amp Power Supply with Battery Charging in Black Lockable Metal Enclosure (NEPSDC5A01B).
| Specification | ||
| INPUT | Voltage (AC mode) | 190 - 265VAC |
| Frequency | 50 or 60Hz | |
| OUTPUT | Voltage (AC mode) | 13.8V ±2% |
| Voltage (BT mode) | Same as battery voltage | |
| Rated Current | 5A | |
| Rated Power | 80W (with charging) | |
| BATTERY | Battery Type | 12V lead acid (not included) |
| Charge Voltage | 13.8V ±2% | |
| Charge Current | 800mA | |
| PROTECTION | Input Fuse | 2A / 250VAC |
| Overload | 6A ±5% | |
| Over Voltage | 16V ±5% | |
| Deep Discharge | 10V ±2% | |
| Short Circuit | Hiccup mode | |
| TEMPERATURE | Working: -20 ~ 50�C | Storage: -30 ~ 80�C |
| HUMIDITY | Working: 20 ~ 80%RH | Storage: 10 ~ 90%RH |
| DIMENSIONS | 265 x 195 x 75 mm |
LED Indicator
| LED status | On | Off | Flickering |
| RED | Input OK | Input Failure | ******* |
| GREEN | Output OK | Output Failure | ******* |
| YELLOW | Battery Fully Charged | Battery Discharging | Battery Charging |
Note: All LED indicators are flickering when a short circuit or overload occurs.

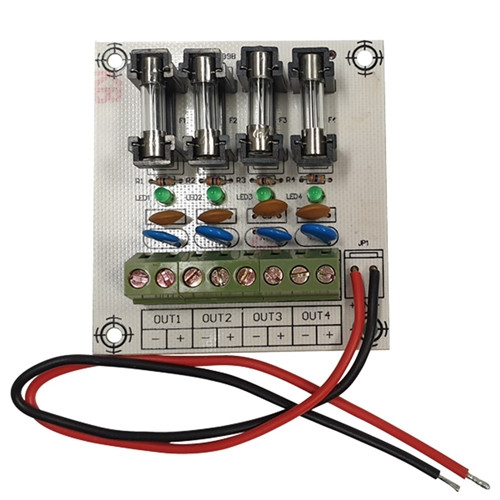

1 x Neptune Power Supply Module, 4 x 1A Individually Fused Outputs suit NEPSDC5A01B (NEPSM4OUT).
| INPUT | Voltage Range | 12VDC±15% |
| OUTPUT | Voltage | 12VDC±15% |
| Fuse Rating | 1A Glass Fuse (Replaceable) | |
| Output Channel | 4 Channels |
| ENVIRONMENT | Temperature | Working -20 - 50�C | Storage -30 - 80�:C |
| Humidity | Working 20 - 80%RH | Storage 10 - 90%RH |
| LED Indication | Green | On | DC output is on |
| Compliant Model | NEPSDC5A01B |
| Dimension | 65 x 60 mm |
Depth in mm: 75
Width in mm: 195
Overall Length in mm: 265
Power Output: 5 A at 13.8 Vdc
Battery Backup: Yes
Battery Leads Included: Yes
Fused Outputs: Yes
LED Indicators: Yes
Lockable Metal Enclosure: Yes
