Available Variants: Amperage - 1 amp, 2.5 amp

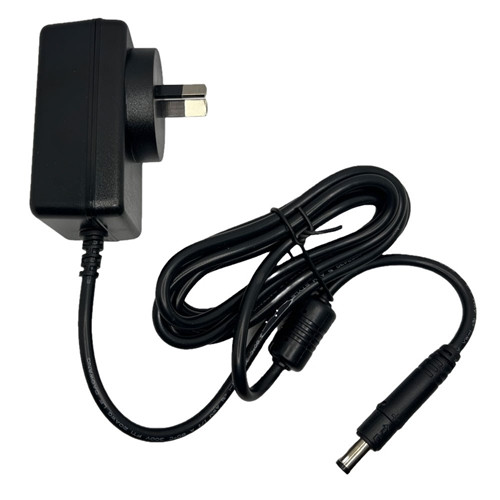

Wall mounted light weight and compact Switch Mode Power Supply Unit with 10 - 12 watt maximum output capacity. 90V-264V AC wide input voltage range suits most product applications.
Insulated active and neutral pins meet AS/NZS3112 for improved electrical safety.
The narrow width of this adaptor allows two adaptors to be used in a standard double power outlet.
- Output voltage:12Vdc.
- Maximum load current: 1.0A.
- Minimum load current: 0.05A.
- Rated output power: 12.0W.
- Efficiency: 70.0%.
- Load regulation: ±5% from 10% to 100% of rated load.
- Over-current protection: adaptor protected with 200% of rated output.
- Over-voltage protection: Zener clamp.
- Turn-on delay (max): 2 seconds.
| Output voltage | 12Vdc. |
|---|---|
| Efficiency | 70.0%. |
| Load regulation | ±5% from 10% to 100% of rated load. |
| Over-voltage protection | Zener clamp. |
