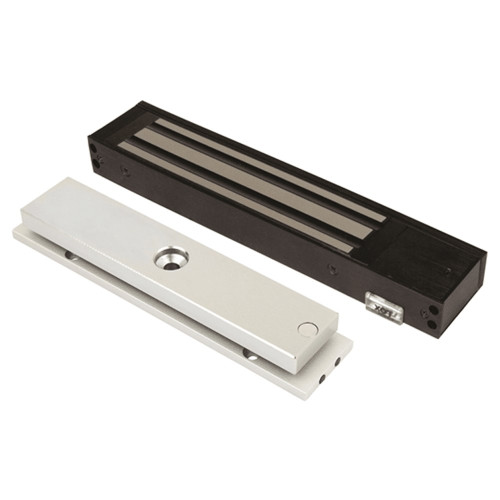

LOX Single Electro Magnetic Lock – Includes Anti-Tamper Plate – EM5700M – Silver
The LOX EM5700M is a monitored single door electro magnetic lock designed for secure access control installations. Monitored models include an anti tamper plate as standard to help prevent hostile attacks on the dome nut fixing bolt.
Key Features
- Single door electro magnetic lock
- Monitored version with door status and lock status sensors
- Includes anti tamper plate for increased security
- Holding force up to 580 kg
- Dual voltage operation 12V DC or 24V DC
- MOV surge protection
- Long distance LED status light panel
- No residual magnetism after release
- Satin anodised aluminium housing
- Zinc plated electromagnetic body
Compatibility
- Designed for single door access control installations
- Commonly installed with card readers, keypads and access control systems
- Suitable for aluminium, timber and steel doors with correct mounting brackets
Full Specifications
| Brand | LOX Locking |
| Maglock Type | Single Door Electro Magnetic Lock |
| Monitoring | Monitored |
| Holding Force | 580 kg |
| Working Voltage | 12 / 24 V DC |
| Current | 500 mA at 12 V DC / 260 mA at 24 V DC |
| Fire Rating | 4 Hour Fire Rated |
| Finish | Satin Anodised |
| Magnet Size | 268 mm (L) x 73 mm (H) x 40 mm (D) |
| Armature Plate Size | 190 mm (L) x 61 mm (H) x 16 mm (D) |
What's in the Box
- LOX EM5700M electro magnetic lock body
- Armature plate
- Anti tamper plate
- Mounting hardware
- Installation fixings
Dimensions
Magnet body: 268 mm length x 73 mm height x 40 mm depth.
Armature plate: 190 mm length x 61 mm height x 16 mm depth.
Frequently Asked Questions (FAQ)
- What does monitored magnetic lock mean?
A monitored magnetic lock includes sensors that report door position and lock status back to the access control system.
- Is this maglock suitable for fire doors?
Yes. The EM5700M magnetic lock is rated for up to four hours on approved fire door assemblies.
- What power supply does it require?
The lock supports both 12 volt DC and 24 volt DC power supplies.
Additional Information
- Monitored maglocks are commonly specified in commercial access control systems where door status feedback is required.
- The included anti tamper plate helps protect the armature bolt against removal attempts.
- Correct alignment between magnet and armature plate is essential to achieve full holding strength.
Warranty
- Manufacturer warranty applies to defects in materials and workmanship.
