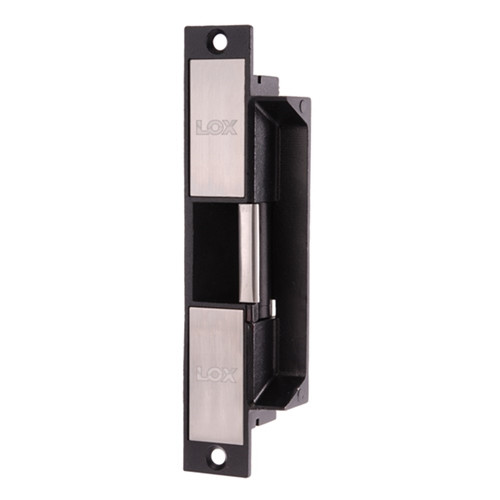

LOX ES10 Electric Strike 12 Or 24VDC 4 Hour Fire Rated IP56 - Black/Silver

LOX ES10 Electric Strike 12/24VDC IP56 Fire Rated

Key Features

• LOX LES10 electric strike designed for access control door systems.
• Dual voltage operation 12 VDC or 24 VDC.
• Field selectable fail safe or fail secure operation.
• Weather resistant design rated IP56.
• Holding strength exceeding 1300 kg.
• Stainless steel faceplate and striker.
• Patented barbell steel locking pin for strength.
• Solenoid suitable for continuous duty operation.
• Fire rated installation up to 2 hours.
• Self adhesive installation template included.
• Pre drilled mounting for optional extension lips.
• Includes tab mounting kit.

Compatibility

• Suitable for hinged doors in commercial access control systems.
• Compatible with a wide range of mechanical locks and latches.
• Designed for 18 mm latch with a 3 mm door gap.
• Suitable for aluminium, steel and timber door frames.
• Ideal for internal and external installations requiring weather resistance.

Full Specifications

Fire Rated

• Successfully fire rated up to 2 hours on fire door assemblies.
• Tested in accordance with AS/NZS 1905 Part 1-1997 and BS 476 Part 22-1987.

Available Finish Color

Black

Silver

Whats In The Box

• LOX ES10 electric strike.
• Tab mounting kit.
• Self adhesive installation template.
• Mounting hardware.

Dimension

Download PDF Resources

	LOX ES10 Electric Strike Datasheet
	LOX ES10 Installation Manual

Fitment

LOX ES10 Electric Strike – Fitting Note

Frequently Asked Questions (FAQ)

• Is this electric strike suitable for outdoor use?
  Yes. It has an IP56 weather resistant rating making it suitable for external installations.
• Can the locking mode be changed?
  Yes. The fail safe or fail secure mode can be selected during installation.
• What is the holding strength?
  The strike provides over 1300 kg holding force.

Additional Information

• Suitable for commercial access control systems.
• Compatible with most standard latch locks.
• Designed for reliable operation with continuous power supply.

LOX Warranty

       LOX products are covered by manufacturer warranty against defects in materials and workmanship for specified product ranges and warranty periods (conditions and exclusions apply).View full warranty details.
