Lorient LAS1011 Firtree Acoustic Smoke Seal – Door Edge Push Fit Seal
The Lorient LAS1011 Firtree Seal is a push-fit perimeter seal designed for installation into a machined groove in the edge of a door or frame. It provides acoustic containment and smoke control while maintaining a concealed, low-profile finish.
The seal features a barbed “firtree” spine with dual flexible fins, allowing it to be friction-fitted without adhesives or mechanical fixings. This design enables quick installation and consistent long-term performance in both new and retrofit door applications.
The LAS1011 is commonly used in commercial door assemblies where controlled gaps are required for acoustic performance and compliance with smoke sealing requirements.
Usually ships in 3 business days
Key Features
- Push-fit perimeter seal with barbed spine design
- Dual flexible sealing fins for consistent contact
- Designed for installation into a machined door edge groove
- No screws or adhesive required for installation
- Suitable for acoustic containment and smoke control applications
- Allows clearance for pivot hardware on double swing doors
- Co-extruded construction for durability and stability
- Anti-microbial additives integrated into seal material
- Fully concealed once installed
- Suitable for new installations and retrofit applications with routing
Suitable Uses
- Commercial door assemblies
- Office and tenancy entry doors
- Apartment and accommodation doors
- Fire and smoke door systems (when correctly specified)
- Double swing doors with pivot hardware
- Acoustic door applications
Full Specifications

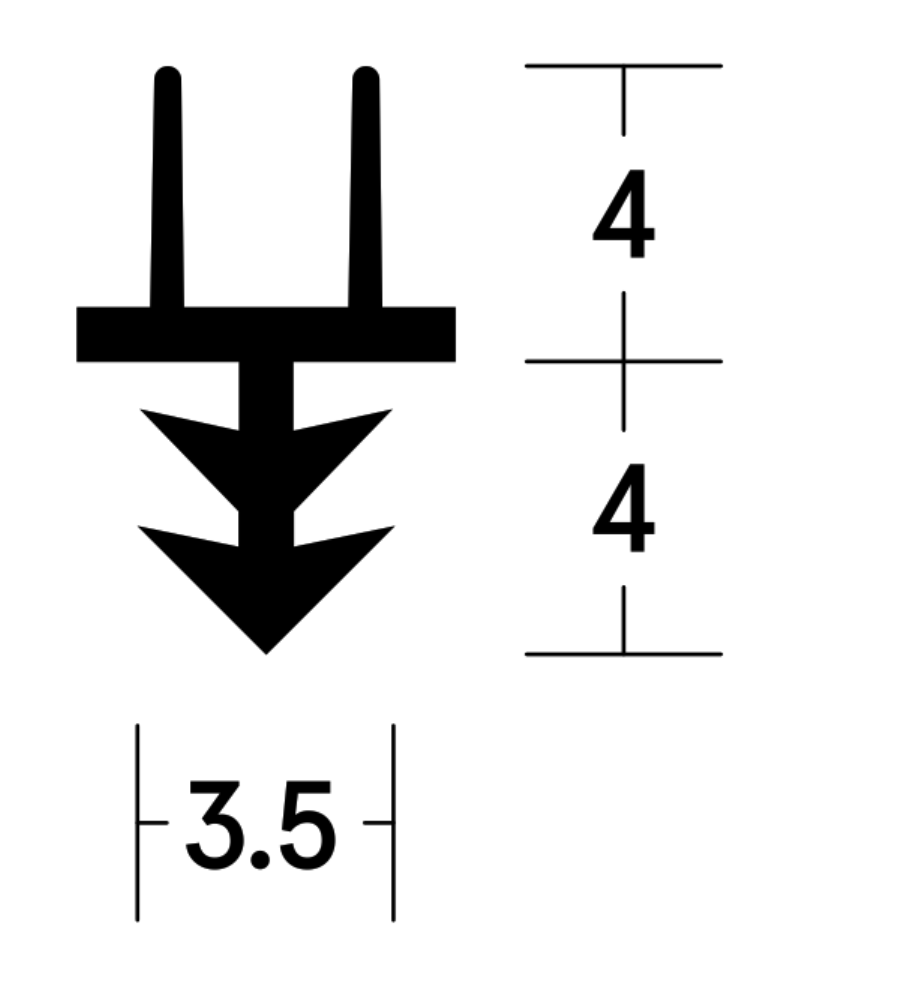

Dimensions
Item Code Family
Frequently Asked Questions
Does this seal require adhesive or screws?
No. The LAS1011 is a friction-fit seal designed to push into a machined groove.
Can this be installed on existing doors?
Yes, but the door or frame must be routed to the correct groove size.
What gap size does this seal suit?
It is designed for controlled gaps between 2mm and 3mm.
Is this suitable for fire doors?
Yes, when installed as part of an approved fire-rated door assembly.
Can it be used on double swing doors?
Yes. The design allows clearance for pivot hardware.
Additional Information
Installation Requirements:
This seal requires a precise groove to be machined into the door edge or frame. Incorrect groove size will affect retention and sealing performance.
Common Mistake:
Attempting to install without routing or using adhesive instead of correct groove preparation will result in failure.
Performance Context:
Acoustic, smoke and fire performance are dependent on the complete door assembly, not the seal alone.
Trade Note:
Best suited to controlled manufacturing environments or experienced installers with routing capability.
