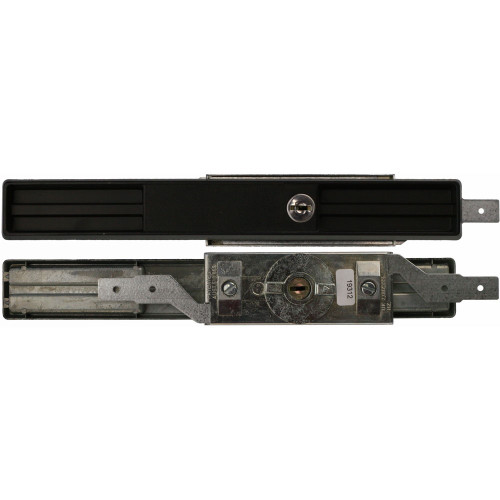

Lock Focus Rolla Lock Low Profile A/V9LP/CLRED/2H/L-A (CL003) Fire Brigade
The Lock Focus A/V9LP/CLRED/2H/L-A is a low profile rolla lock designed for shutter and grille door applications where reduced fascia projection is required. This model is keyed for service access to the 003 Fire Brigade key system and uses the Silca LW3 keyway, supplied with one key.
Key Features
- Keyed to 003 Fire Brigade service key.
- Low profile fascia with 7.8 mm projection.
- Suitable for mounting on 1.4 mm thick extrusions.
- Front key operation with rear latch operation.
- Equal length locking arms.
- Rear fixing installation.
- Bulk packed supply.
Specifications
- Item Code: 07352302
- Brand: Lock Focus
- Key Profile: LW3
- Assembly Form: Low profile fascia
- Keyed for Service: 003 Fire Brigade
- Keying: Keyed alike (service key system)
- Keys Supplied: 1
- Equal Length Arms: Yes
- Arm Throw: 19 mm
- Fascia Projection: 7.8 mm
- Fixing: Rear fixing
- Pack Type: Bulk packed
- Material: Zinc alloy diecast body
What's In The Box
- 1 × Lock Focus low profile rolla lock assembly
- 1 × Key (003 Fire Brigade service key system)
Suitable Uses
- Roller shutter and grille doors requiring a low profile fascia.
- Sites needing service access via the 003 Fire Brigade key system.
- Installations using thin extrusions around 1.4 mm thickness.
Dimensions
| Dimension | Size |
|---|---|
| Lock Body Length (arms extended) | 259 mm |
| Arm Throw | 19 mm |
| Fascia Projection | 7.8 mm |
Lock Focus Rolla Lock Series - Item Code Family
Frequently Asked Questions
- What does “keyed to 003 Fire Brigade” mean?
This lock is supplied for service access applications using the 003 Fire Brigade key system. - What keyway does this model use?
It uses the Silca LW3 key profile. - Does this include keys?
Yes. This model is supplied with one key.
Additional Information
- The low profile fascia helps reduce interference where door clearances are tight.
- Rear latch operation allows internal operation independent of the front key cylinder.
- Commonly specified on roller shutters requiring emergency service access.
