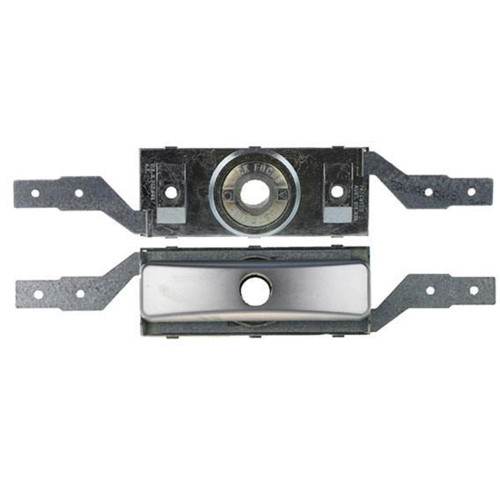

Lock Focus Rolla Lock Low Profile A/V9LP/C4/4-/-LL
The Lock Focus A/V9LP/C4 low profile rolla lock is designed for shutter and grille applications where minimal fascia projection is required. It features front key operation, rear latch operation, equal length arms, rear fixing and a compact low profile fascia suitable for thin extrusions.
Key Features
- Low profile fascia with 7.8 mm projection.
- Suitable for mounting on 1.4 mm thick extrusions.
- Front key operation with rear latch operation.
- Equal length locking arms.
- Rear fixing installation.
- Bulk packed.
Specifications
- Item Code: 07352294
- Brand: Lock Focus
- Finish: Satin Chrome
- Key Profile: LW4
- Assembly Form: Low profile fascia
- Equal length arms: Yes
- Arm throw: 19 mm
- Fascia projection: 7.8 mm
- Fixing: Rear fixing
- Pack type: Bulk packed
- Material: Zinc alloy diecast body
What's In The Box
- 1 × Lock Focus low profile rolla lock assembly
Suitable Uses
- Roller shutter and grille doors.
- Installations requiring a low profile fascia projection.
- Thin extrusion door frames around 1.4 mm thickness.
Dimensions
| Dimension | Size |
|---|---|
| Lock body length with arms extended | 259 mm |
| Arm throw | 19 mm |
| Fascia projection | 7.8 mm |
Lock Focus Rolla Lock Series - Item Code Family
Frequently Asked Questions
- What makes this a low profile model?
It has a reduced fascia projection of 7.8 mm, making it suitable for tighter clearance installations. - What key profile does it use?
It uses the Silca LW4 key profile. - What door types is it suitable for?
It is designed for roller shutters and grille style doors, particularly those using thin extrusions.
Additional Information
- This model incorporates a Lockwood 001 inner barrel and is compatible with many restricted keying systems.
- The low projection fascia helps reduce interference with tight door clearances.
