Jack Fuse PP10HD Power Port 10 Way High Density Fuse Module with Self Healing Fuses
The Jack Fuse PP10HD is a compact ten way high density power distribution module using self healing PPTC fuses. It provides fused outputs with LED status indicators and is designed for installation in space-restricted access control and security cabinets.
Key Features
- Ten fused outputs with LED status indicators.
- Self healing PPTC fuse protection.
- High density design for compact cabinets.
- Double deck terminal arrangement.
- DIN rail mountable circuit board.
Specifications
- Item Code: PP10HD
- Product Type: Power distribution module
- Working Voltage: 12 to 28 volts DC
- Outputs: 10 fused outputs
- Fuse Type: Self healing PPTC fuses
- LED Indicators: Yes
- Mounting: DIN rail
- Form Factor: Circuit board
What's In The Box
- 1 × PP10HD power distribution module
Suitable Uses
- Access control system power distribution.
- Security cabinets with limited space.
- Installations requiring resettable fuse protection.
- Reader, lock and peripheral power circuits.
Dimensions
Power Port Series - Item Code Family
| Item Code | Outputs | Fuse Type | Description |
|---|---|---|---|
| PP5FRUNI | 5 | Self healing | 5 way fire trip distribution module |
| PP8FR | 8 | Glass fuses | 8 way fire trip distribution module |

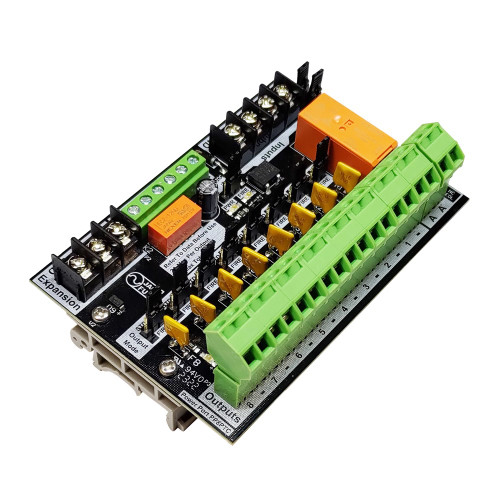

| PP8PTC | 8 | Self healing | Premium 8 way distribution module with auxiliary relay |
| PP10HD | 10 | Self healing | 10 way high density fused module - This product |
| PP10MG | 10 | Glass fuses | 10 way modular glass fuse distribution module |
PDF Resources
Frequently Asked Questions
- What are self healing fuses?
Self healing fuses automatically reset after a fault clears, removing the need to replace blown fuses. - Where is this module typically installed?
It is commonly mounted on DIN rail inside access control or security equipment cabinets. - Is this suitable for compact enclosures?
Yes. The high density design is intended for installations where cabinet space is limited.
Additional Information
- High density design allows more outputs in smaller cabinets.
- Self healing fuse technology reduces service visits after short circuit events.
- Commonly used in commercial access control installations where cabinet space is restricted.
Technical Drawing
.
