Zanda TS.7004.HO.DAX – Hold Open Floor Spring Double Action
The Zanda TS.7004.HO.DAX is a heavy-duty hold open floor spring from the Rutland TS.7000 range, designed for double action pivot doors. Using a powerful yet smooth cam and roller mechanism, it offers effortless operation and precise control, making it ideal for timber or aluminium pivot doors in high-use environments such as hospitals, surgeries, nursing homes, and other spaces where easy opening is essential. With adjustable closing, latch, and back check, plus temperature-stable hydraulic oil, it delivers consistent performance in temperatures from –15 °C to +40 °C.
Key Features
- Cam and roller mechanism for smooth, controlled door operation
- Hold open function for convenient fixed positioning
- Suited to timber and aluminium double action pivot doors
- Perfect for environments needing easy access, such as hospitals and care facilities
- Adjustable closing speed, latch action, and back check for customised control
- Temperature-stable hydraulic oil ensures consistent performance from –15 °C to +40 °C
- Universal application for left- or right-handed doors
Specifications
- Item Code: TS.7004.HO.DAX
- Type: Hold Open Floor Spring – Double Action
- Series: Rutland TS.7000 range
- Strength: EN4
- Mechanism: Cam and roller
- Adjustable Closing Speed: Yes
- Adjustable Latch Action: Yes
- Adjustable Back Check: Yes
- Max Door Width: 850 / 950 / 1150 mm (per weight rating)
- Max Door Weight: 70 / 105 / 150 kg
- Opening Angle: 130°
- Handing: Left- and right-handed (universal)
- Operating Temperature: –15 °C to +40 °C
- Finish Options & Codes: Matt Black (TS.7004.HO.DAX.BLK), Graphite Nickel (TS.7004.HO.DAX.GN), Stainless Steel (TS.7004.HO.DAX.SS), White (TS.7004.HO.DAX.WHT)
What's In The Box
- 1 × TS.7004.HO.DAX Hold Open Floor Spring unit
- Cover plate in selected finish
- Installation fittings
- Installation instructions

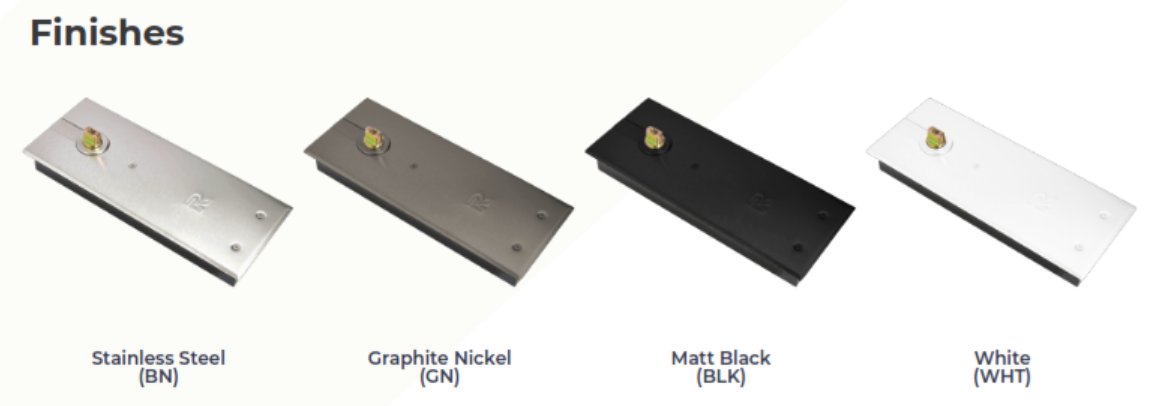

Available Finish Options
-
Matt Black
TS.7004.HO.DAX.BLK -
Graphite Nickel
TS.7004.HO.DAX.GN -
Stainless Steel
TS.7004.HO.DAX.SS -
White
TS.7004.HO.DAX.WHT
