Hinge Fixed Pin - 100x75x2.5mm
Hinge Fixed Pin - 100x75x2.5mm
Hinge Fixed Pin - 100x75x2.5mm

Hinge Fixed Pin - 100x75x2.5mm

Zanda

$29.95 - $49.95
(No reviews yet) Write a Review
SKU:
STK 5904
UPC:
2581581528339
Adding to cart… The item has been added

Zanda 5904 – Bearing Hinge, Fixed Pin, 100 mm × 75 mm × 2.5 mm

The Zanda 5904 Bearing Hinge with Fixed Pin is engineered for smooth, long-lasting performance on high-use doors. The integrated bearing design reduces friction and wear, ensuring quiet, effortless operation over the hinge’s life. Its robust 2.5 mm stainless steel construction, fire rating, and finish options make it suitable for both residential and commercial internal doors.

Key Features

  • Bearing mechanism for smooth, quiet door movement
  • Fixed Pin for secure door alignment and stability
  • Ideal for heavy-use internal doors in residential or commercial settings
  • Available in three versatile finishes to match popular door hardware styles

Specifications

  • Item Code: 5904
  • Type: Bearing Hinge — Fixed Pin
  • Dimensions: 100 mm (height) × 75 mm (width) × 2.5 mm (leaf thickness)
  • Material: 304 Grade Stainless Steel
  • Applications: Suitable for residential and commercial internal doors
  • Performance: EN 1935 Grade 13, CE Approved; 200,000 cycle tested on 120 kg door mass
  • Fire Rating: Up to four hours (AS 1905.1)

What's In The Box

  • Bearing Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm
  • Screw pack to suit timber and metal frames
  • Installation instructions

Available Finish Options

  •

    Matt Black
    5904.BLK

  •

    Stainless Steel
    5904.SS

  •

    White
    5904.WHT

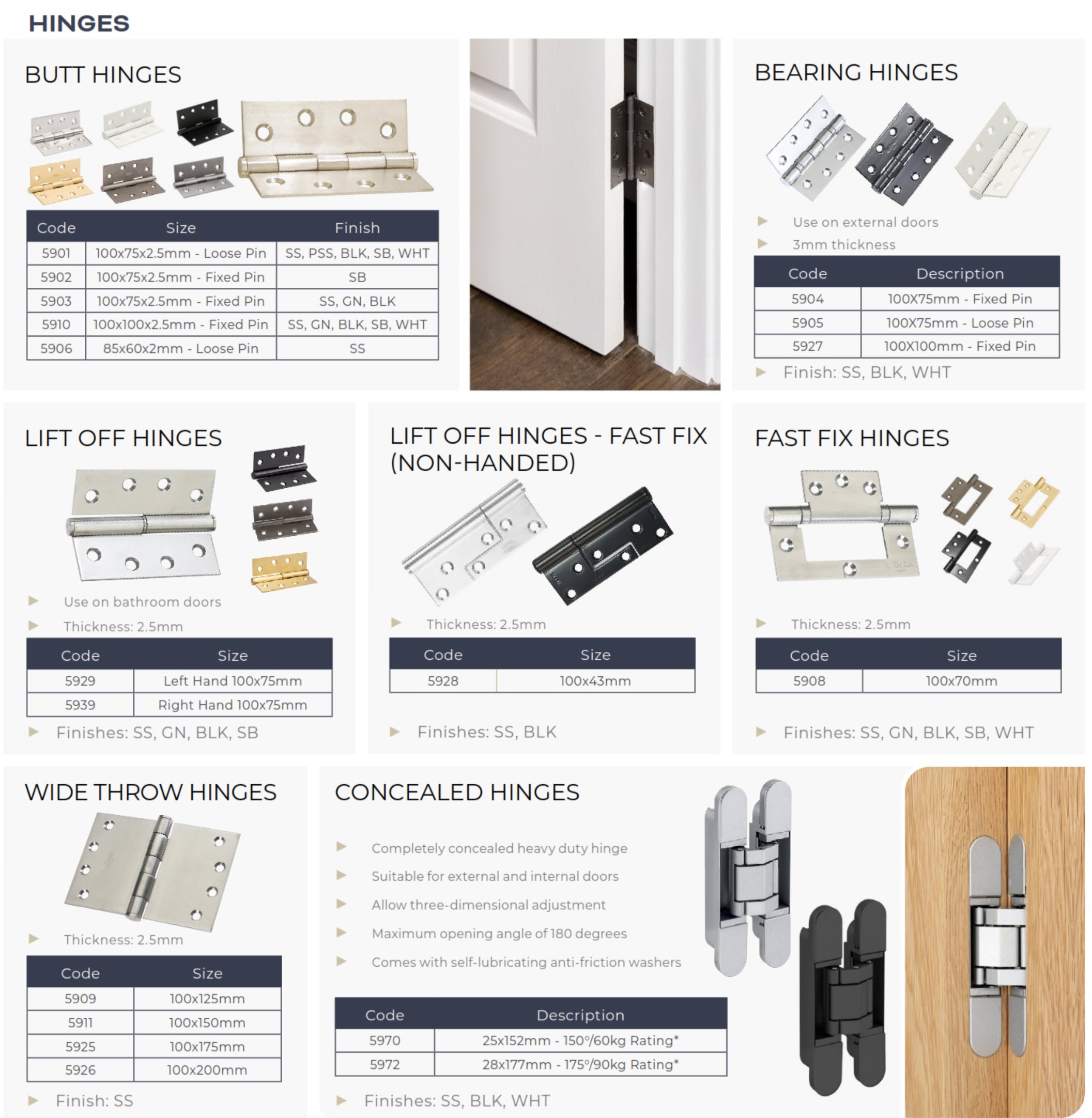

Item Code Family – Zanda Hinges

Item Code Description
5901 Butt Hinge — Loose Pin, 100 mm × 75 mm × 2.5 mm
5902 Butt Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm
5903 Butt Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm (Stainless Steel or Graphite Nickel finish)
5904 Bearing Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm
5905 Bearing Hinge — Loose Pin, 100 mm × 75 mm × 2.5 mm
5906 Butt Hinge — Loose Pin, 85 mm × 60 mm × 2 mm
5908 Fast Fix Hinge — Timber Fix, 100 mm × 70 mm × 2.5 mm
5908.2 Fast Fix Hinge — Aluminium Fix, 100 mm × 70 mm × 2.5 mm
5909 Wide Throw Butt Hinge, 100 mm × 125 mm × 3.2 mm
5910 Butt Hinge — Fixed Pin, 100 mm × 100 mm × 2.5 mm
5911 Wide Throw Butt Hinge, 100 mm × 150 mm × 3.2 mm
5925 Wide Throw Butt Hinge, 100 mm × 175 mm × 3.2 mm
5926 Wide Throw Butt Hinge, 100 mm × 200 mm × 3.2 mm
5927 Bearing Hinge — Fixed Pin, 100 mm × 100 mm × 2.5 mm
5928 Lift-Off Hinge — Fast Fix & Non-Handed, 100 mm × 73 mm × 2.5 mm
5929 Lift-Off Hinge — Left Hand, 100 mm × 75 mm × 2.5 mm
5939 Lift-Off Hinge — Right Hand, 100 mm × 75 mm × 2.5 mm
5970 Concealed Hinge — 25 mm × 152 mm, 150° opening, 60 kg rating (3 hinges)
5972 Concealed Hinge — 29 mm × 177 mm, 150° opening, 120 kg rating (3 hinges)

Download PDF Resources

Zanda 5901 Butt Hinge — Spec Sheet
Zanda Door Furniture Product Brochure
Zanda Architectural Catalogue
Zanda Commercial Hardware Catalogue
Zanda Warranty

!
