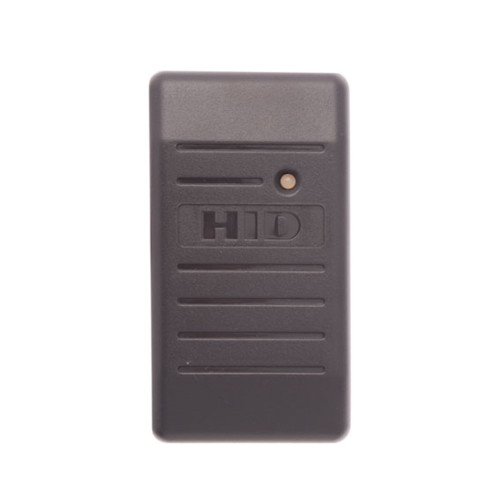

HID 125kHz MiniProx Proximity Reader – Charcoal Grey
The HID MiniProx proximity reader is a compact 125kHz mullion mount reader designed for access control applications. It provides Wiegand output for integration with compatible controllers and features a slim profile suitable for door frames and narrow mounting surfaces.
With a wide input voltage range and low current draw, the MiniProx reader is suited to both new installations and retrofit access control systems.
Key Features
- 125kHz proximity reader.
- Slim mullion mount design.
- Wiegand output for controller integration.
- Pigtail wiring connection.
- Wide input voltage range.
- Low current draw operation.
- Charcoal Grey finish.
Specifications
- Item Code: 5365EGP00
- Product Type: Proximity reader
- Frequency: 125kHz
- Mounting: Mullion mount
- Output: Wiegand
- Connection: Pigtail wiring
- Input Voltage: 5–16VDC
- Current Draw: 35mA
- Finish: Charcoal Grey
What's In The Box
- 1 × HID MiniProx proximity reader
Suitable Uses
- Commercial access control systems.
- Office and building entry points.
- Door frames or narrow mounting locations.
- Retrofit reader replacements.
Dimensions
Frequently Asked Questions
- What controllers does this reader work with?
It provides a Wiegand output, so it is compatible with access control systems that accept Wiegand reader inputs. - Is this suitable for outdoor installation?
Installation suitability depends on enclosure rating and site conditions. Confirm environmental requirements before installation. - What type of credentials does it read?
It is designed for 125kHz proximity credentials compatible with HID format systems.
Additional Information
- Mullion readers are commonly used where space is limited, such as on door frames or narrow wall sections.
- 125kHz readers are widely used in legacy access control systems due to their simplicity and reliability.
- When replacing an existing reader, confirm both frequency and output format to ensure compatibility.
