FSH FES10 Electric Strike - 2 Hour Fire Rated - IP56

FSH FES10 Electric Strike - 2 Hour Fire Rated - IP56

FSH

$183.04 - $230.56
(No reviews yet) Write a Review
SKU:
STK FES10 FES10M
UPC:
3122882445752
Availability:
Usually same day dispatch (if ordered before 11am)
Adding to cart… The item has been added
FSH logo

FSH FES10 Electric Strike – ANSI Footprint

The FSH FES10 is a compact ANSI-footprint electric strike designed for light commercial and residential access control applications. It is compatible with a wide range of mortice and cylindrical locks and supports field-selectable fail safe or fail secure operation. The FES10 series is commonly specified where a reliable, fire-rated strike is required with minimal power consumption.

Key Features

  • Compact ANSI footprint electric strike.
  • Field selectable Power To Lock (Fail Safe) or Power To Open (Fail Secure).
  • Dual voltage operation: 12 VDC or 24 VDC.
  • Patented barbell steel locking mechanism for simple function changeover.
  • Stainless steel faceplate and striker.
  • Compatible with door latch depth up to 18 mm with 3 mm door gap.
  • Pre-drilled to accept optional extension lips.

Fire Rated

  • Successfully fire tested on door assemblies up to 2 hours.
  • Tested in accordance with AS/NZS 1905.1 and BS 476 Part 22.
  • Final fire door approval must be confirmed with the door manufacturer.

Specifications

Product Type Electric strike (ANSI footprint)
Function Power To Lock (PTL) / Power To Open (PTO), field selectable
Voltage 12 / 24 VDC
Current Draw 12 VDC: 200 mA
24 VDC: 100 mA
Holding Strength Over 1300 kg
Monitoring Non-monitored (FES10)
Door latch monitoring (FES10M)
IP Rating IP56 (non-monitored FES10 only)

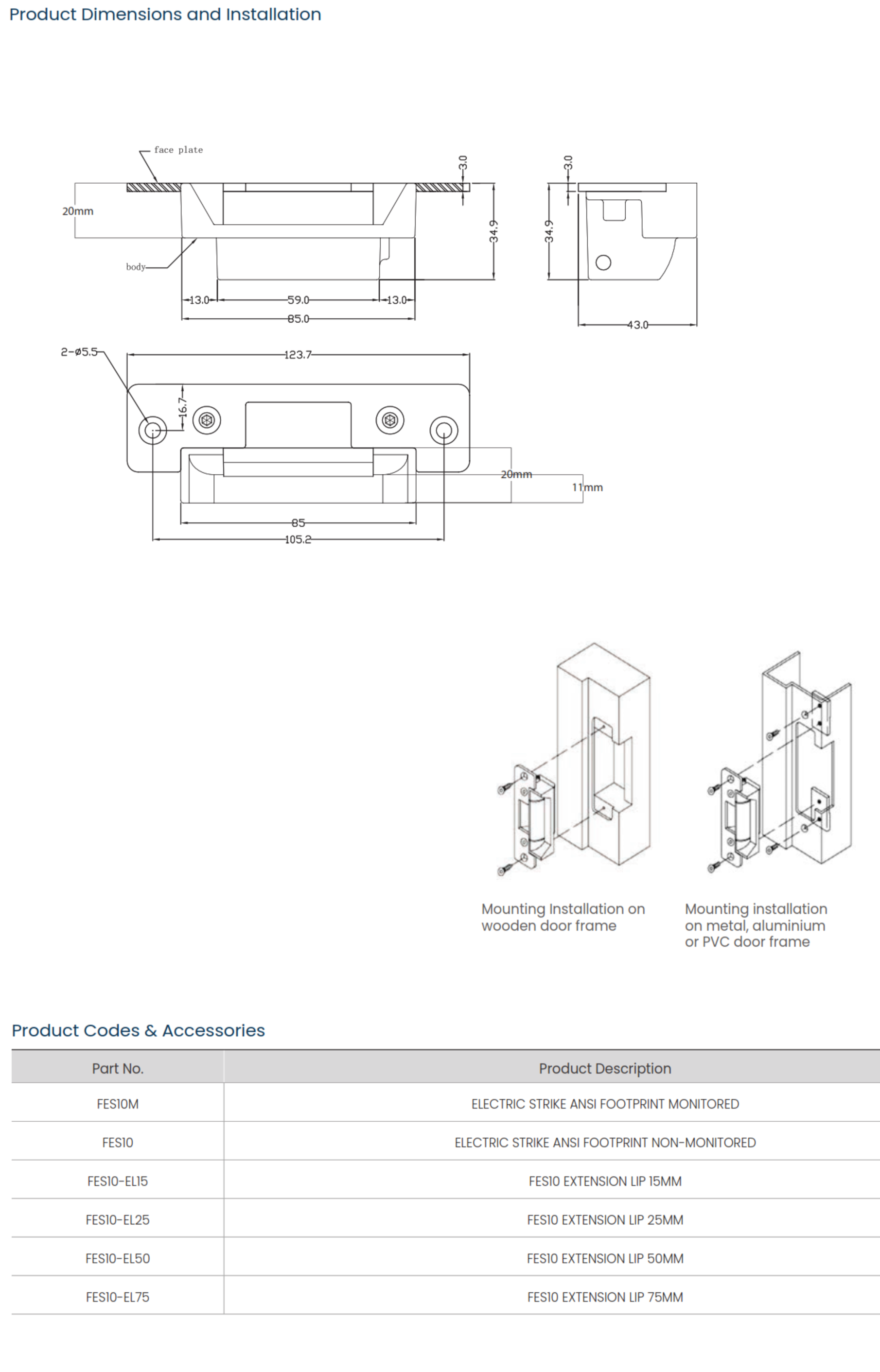

Dimensions 125 mm (L) × 42 mm (W) × 35 mm (D)
Construction Stainless steel faceplate and striker

Available Variants

Item Code Monitoring Weather Rating
FES10 Non-monitored IP56
FES10M Door latch monitoring Not IP rated

Item Code Family

Item Code Strike Type Monitoring Mounting Style Typical Application
FES10 Electric Strike Non-monitored Mortice / ANSI footprint Light commercial, residential
FES10M Electric Strike Monitored (Latch status) Mortice / ANSI footprint Access control with monitoring
FES15 Rim Mount Electric Strike Non-monitored Surface / Rim latch Surface latch doors
FES15M Rim Mount Electric Strike Monitored (Door status) Surface / Rim latch Access control with monitoring
FES20 Heavy Duty Electric Strike Non-monitored Mortice Commercial, higher duty cycles
FES20M Heavy Duty Electric Strike Monitored (LSS + DSS) Mortice Commercial access control

Warranty

Covered by the FSH 5 Year Mechanical and Electronic Warranty when installed and used in accordance with FSH and Allegion guidelines.

Frequently Asked Questions

Is the FES10 suitable for outdoor installations?
Yes. The non-monitored FES10 model is weather resistant to IP56.

Can the strike be configured as fail safe or fail secure?
Yes. The locking function is field selectable by reversing the barbell mechanism.

Are extension lips available?
Yes. Extension lips in multiple depths are available to suit different frame profiles.

Additional Information

  • Ensure a 1 mm latch clearance to prevent side loading on the strike keeper.
  • Do not rotate the keeper while changing PTL/PTO mode to avoid damaging the barbell mechanism.
  • Voltage selection must be set prior to applying power.

!
