FSH FEM4300M 280kg Single Electromagnetic Lock – Fully Monitored
The FSH FEM4300M is a fully monitored single electromagnetic lock designed for commercial access control applications where both door and lock status feedback are required. With up to 280 kg of holding force, the FEM4300M is suitable for internal and perimeter single doors in offices, retail, education, and commercial facilities.
Key Features
- Single electromagnetic lock for commercial door applications.
- Up to 280 kg holding force.
- Fully monitored with Door Status Sensor (DSS) and Lock Status Sensor (LSS).
- Dual voltage 12 VDC or 24 VDC, field selectable.
- Built-in MOV surge protection.
- No residual magnetism when power is removed.
- Red/green bi-colour LED for clear lock and door status indication.
Fire Rated
- Tested on fire door assemblies up to 2 hours in accordance with AS 1905.1:2015.
- Final approval must be confirmed with the fire door manufacturer.

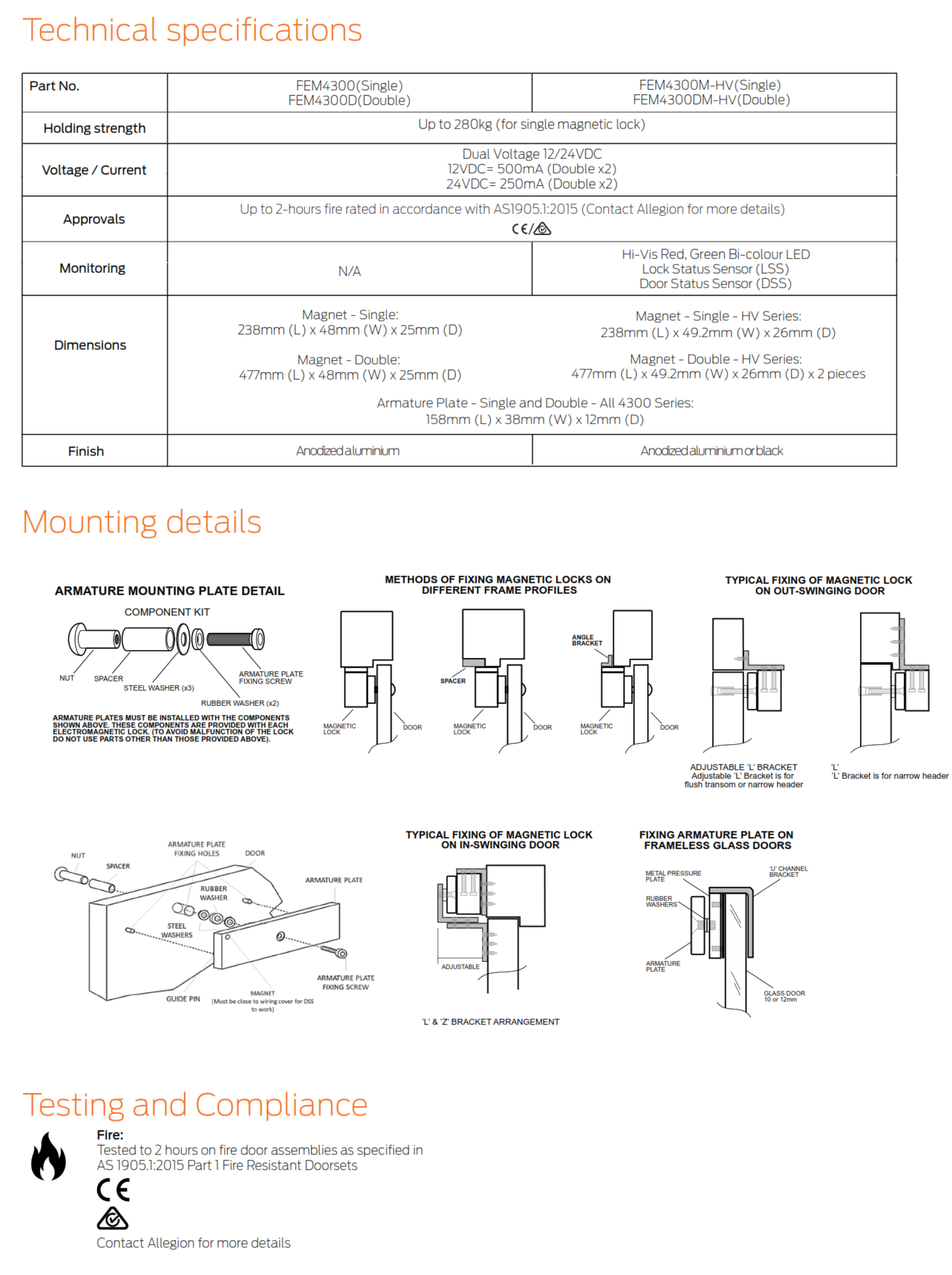

Specifications
.
Available Colour Variants
-
Black
-
Satin Chrome
Warranty
Covered by the FSH 5 Year Mechanical and Electronic Warranty when installed and used in accordance with FSH and Allegion guidelines.
FSH FEM4300 Series Catalogue
FSH Electric Strikes Overview
FSH 5 Year Warranty
Frequently Asked Questions
Is this maglock suitable for single doors?
Yes. The FEM4300M is designed specifically for single door installations.
What does fully monitored mean?
Fully monitored models provide both door status and lock status outputs to the access control system.
Is there residual magnetism when power is removed?
No. The FEM4300 series is designed to eliminate residual magnetism.
Additional Information
- Correct armature mounting components must be used to achieve full holding force.
- Monitoring outputs should be verified during commissioning.
- Fire door approvals must be confirmed with the door manufacturer.
